(196) - D54561 HYDRA-GUIDE CONTROL VALVE

Запчасти Case 35 (196) - D54561 HYDRA-GUIDE CONTROL VALVE

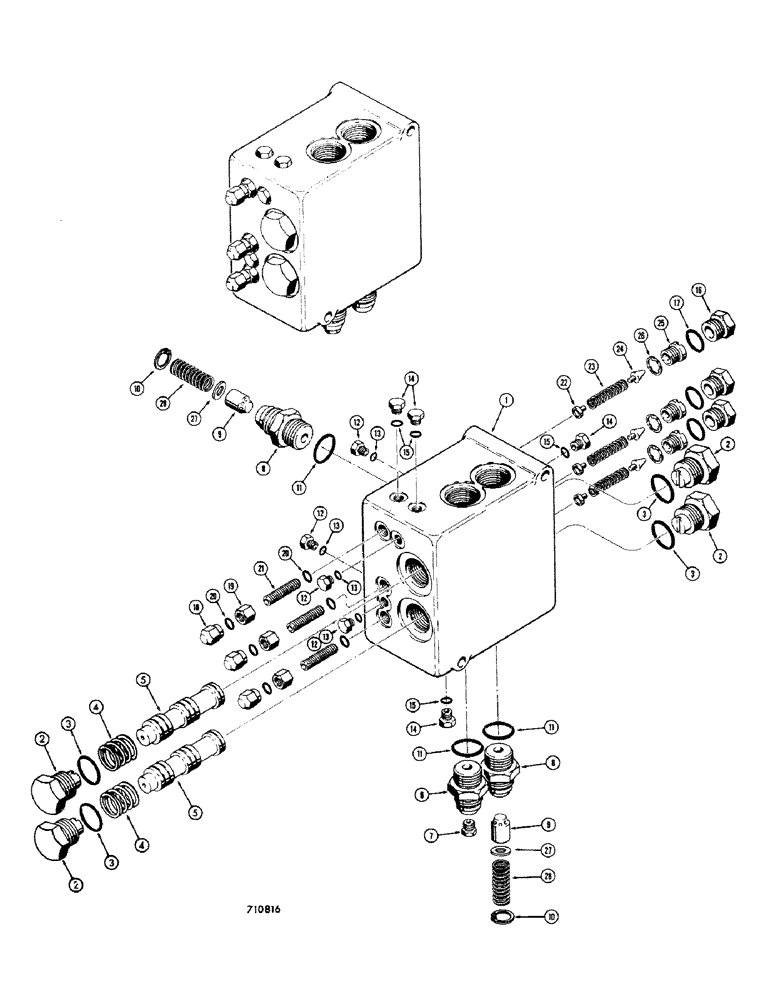

Схема запчастей Case 35 - (196) - D54561 HYDRA-GUIDE CONTROL VALVE
23
12
11
2
13
5
14
16
8
3
27
11
9
13
20
25
4
8
15
14
5
9
19
13
8
13
21
12
3
3
28
15
24
3
26
12
11
1
2
10
18
4
14
10
12
22
17
28
2
7
2
27
20
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D54561

VALVE

1шт.

1

NUS-NSS

Body NEG

1шт.

2

D53336

Plug

4шт.

3

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" Ring

4шт.

4

D53341

VALVE SPRING

Spring

2шт.

5

D53329

Spool

2шт.

6

D53335

COUPLING

Connector

1шт.

7

D53337

PLUG

Restrictor

1шт.

8

D53331

Connector

2шт.

9

D53330

PISTON ASSY.

Piston

2шт.

10

A35694

SNAP RING,0.688", Int, #68

Ring, Snap, 0.688", Int, #68

2шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

3шт.

12

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

4шт.

13

218-5001

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk

1шт.

14

9672438

PLUG,7/16" - 20 ORB

4шт.

15

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

16

86512512

PLUG,7/8" - 14 ORB

3шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

18

D53338

NUT

3шт.

19

D53342

LOCK NUT

Nut

3шт.

20

A8613

O-RING,0.426" ID x 0.566" OD

"O" Ring

6шт.

21

83-624

SET SCREW,Hex Soc, 3/8"-16 x 1 1/2"

Screw

3шт.

22

D53334

GUIDE

3шт.

23

D53333

VALVE SPRING

Spring

3шт.

24

D53332

CONE

Poppet

3шт.

25

D53339

PLUG

Seat

3шт.

26

D53340

GASKET

3шт.

27

D54567

WASHER

2шт.

28

D54566

VALVE SPRING

Spring

2шт.
