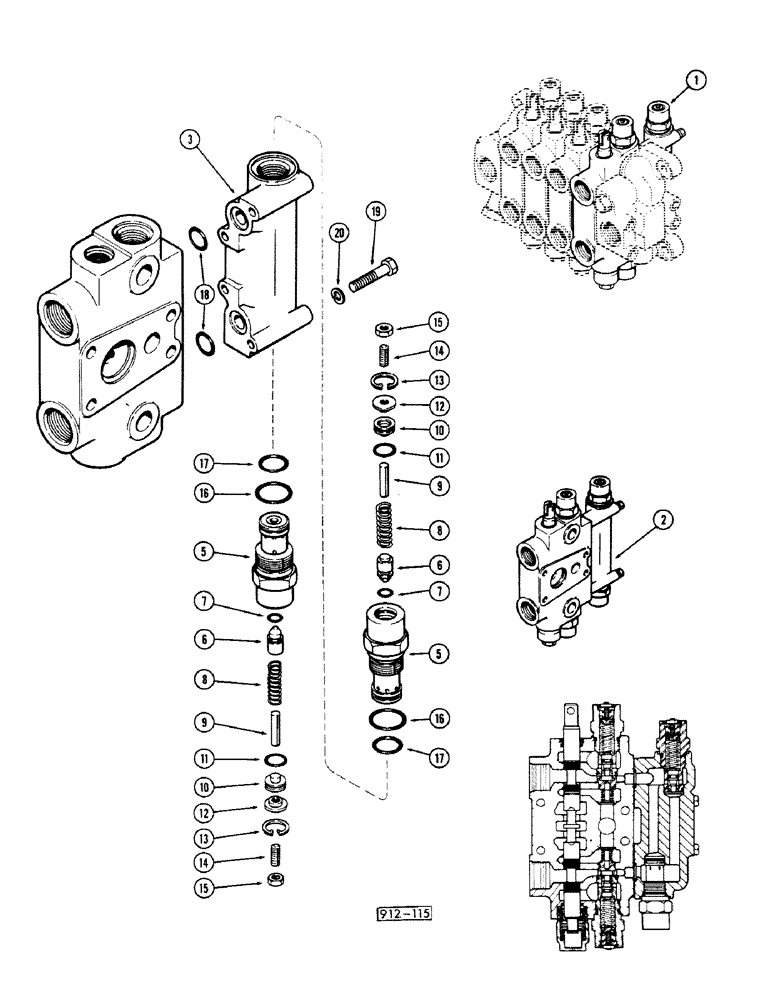

Запчасти Case 35 (192) - SECONDARY VALVE G33094

1

G33072

LOCK VALVE

Section ass'y-swing

1шт.

2

G33094

HOUSING

Valve ass'y- secondary

1шт.

3

NUS-NSS-NEG

Body

1шт.

G33096

LOCK VALVE

Valve ass'y(1800PSI)

2шт.

5

NUS-NSS-NEG

Body

1шт.

6

G33089

VALVE

Poppet

1шт.

7

A29090

"O" Ring

1шт.

8

G33090

SPRING

1шт.

9

G33241

PIN

-stop

1шт.

10

G33091

PISTON

Plunger

1шт.

11

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O" Ring

1шт.

12

G33092

RETAINER

1шт.

13

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75

1шт.

14

178-630

SET SCREW,Hex Soc, 1/4"-20 x 3/4"

Screw-adjusting

1шт.

15

25-144

JAM NUT,Jam, 1/4"-20, G5

-hex. "1/4" NC"

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

17

G33093

O-RING

"O" Ring

1шт.

18

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" Ring

2шт.

19

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

-hex. "5/16" x 3-1/4" NC"

4шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.
