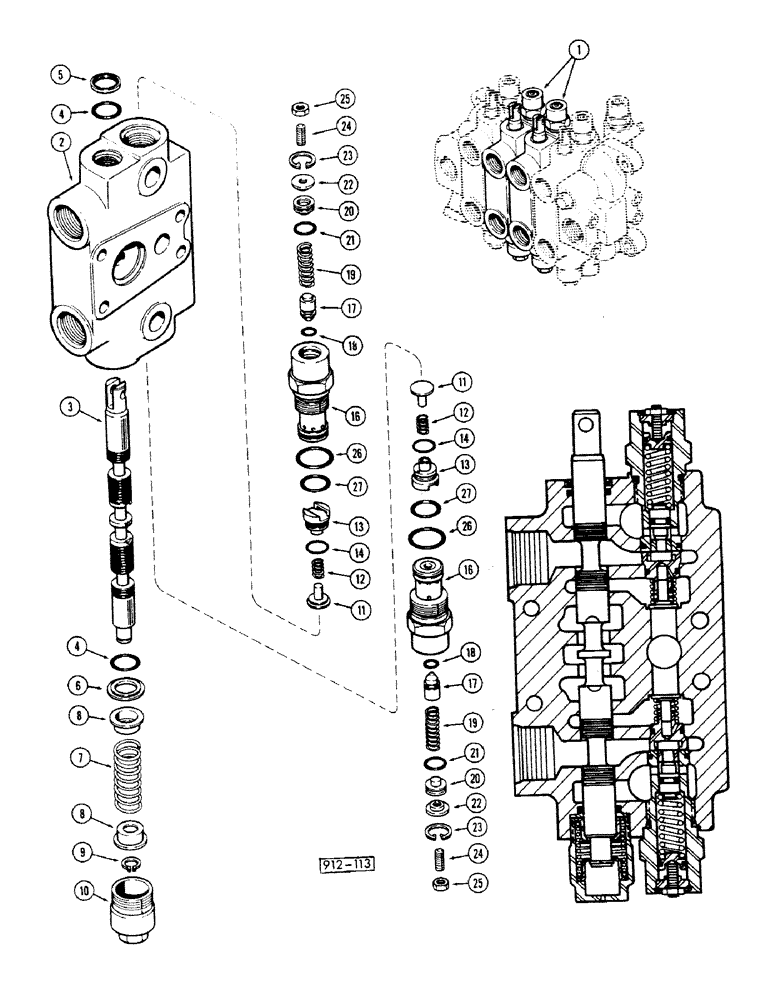

Запчасти Case 35 (188) - DIPPER-AND-BUCKET CONTROL SECTION G33097

1

G33097

VALVE

Section ass'y

2шт.

2

NUS-NSS-NEG

Housing

1шт.

3

NUS-NSS-NEG

Spool

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" Ring

2шт.

5

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

1шт.

6

G33803

RETAINER

1шт.

7

G34463

SPRING

1шт.

8

G33075

RETAINER,12.2mm ID, 27.9mm OD

-centering

2шт.

9

G33077

SNAP RING,#47, Ext

Ring, Snap, #47, Ext

1шт.

10

P0033080G

SCREW

1шт.

11

G33081

VALVE POPPET

Poppet

2шт.

12

G33573

SPRING

2шт.

13

G33084

PLUG

2шт.

14

G33686

O-RING,0.07" Thk x 0.61" ID

"O" Ring

2шт.

G34043

KIT

Valve ass'y(2750 PSI)

2шт.

16

NUS-NSS-NEG

Body

1шт.

17

G33089

VALVE

Poppet

1шт.

18

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

1шт.

19

G33090

SPRING

1шт.

20

G33091

PISTON

1шт.

21

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O" Ring

1шт.

22

G33092

RETAINER

1шт.

23

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75

1шт.

24

178-630

SET SCREW,Hex Soc, 1/4"-20 x 3/4"

Screw-adjusting

1шт.

25

25-144

JAM NUT,Jam, 1/4"-20, G5

-hex. "1/4" NC"

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

27

G33093

O-RING

"O" Ring

1шт.
