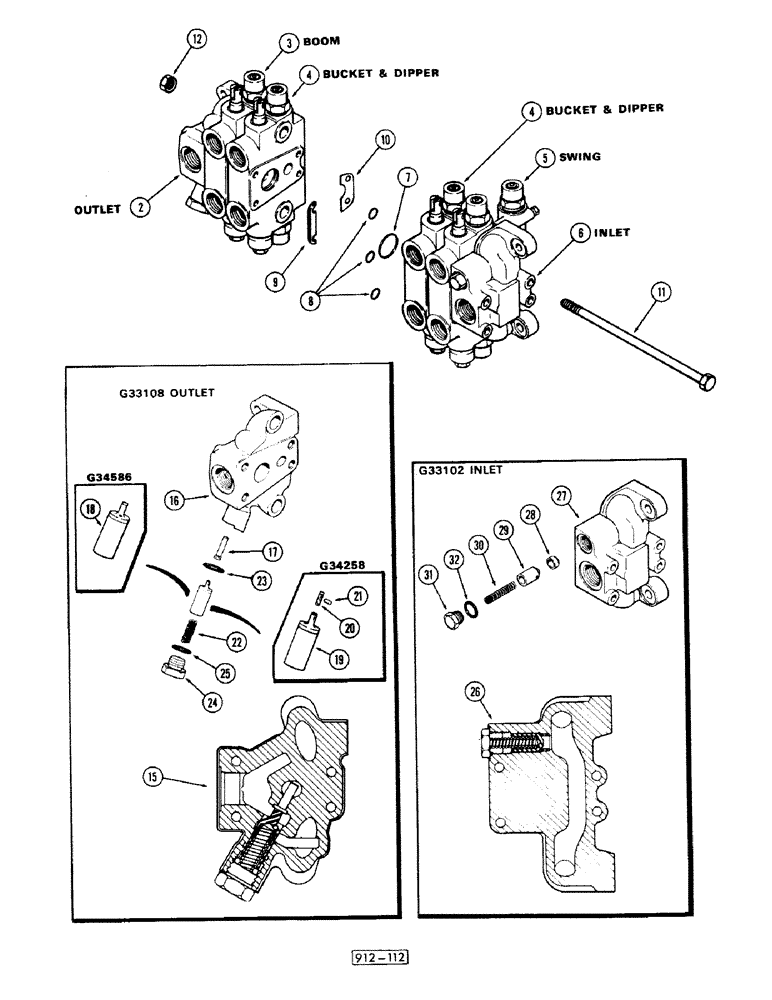

Запчасти Case 35 (186) - OUTLET SECTION (G33108 AND G33102), G33108 SECTION OUTLET

15

G33108

MANIFOLD

Section-outlet

1шт.

16

NUS-NSS-NEG

Body

1шт.

17

G33110

PISTON

Plunger

1шт.

18

G34586

SPOOL,22mm OD x 59.87mm L

A partir du No.1215-Distributeur Case/Starting with No.1215-Case control valve/Von No.1215-Case

1шт.

G34258

SPOOL

ass'y, Jusqu au No.1214-Distributeur Case/Up to No. 1214-Case control valve/Bis No. 1214-Case steuerventil

1шт.

19

G33111

SPOOL

Jusqu au No.1214-Distributeur Case/Up to No. 1214-Case control valve/Bis No. 1214-Case

1шт.

20

G34259

Pin, Jusqu au No.1214-Distributeur Case/Up to No. 1214-Case control valve/Bis No. 1214-Case

1шт.

21

138-6

LOCK PIN,1/16" x 1/2", Slotted

Pin, , Jusqu au No.1214-Distributeur Case/Up to No. 1214-Case control valve/Bis No. 1214-Case 1/16" x 1/2", Slotted

1шт.

22

G33112

SPRING

1шт.

23

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

"O" Ring

1шт.

24

G33113

PLUG

1шт.

25

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" Ring

1шт.

26

G33102

MANIFOLD

Section inlet

1шт.

27

NUS-NSS-NEG

Body, G33102 inlet section

1шт.

28

G33104

SEAT

G33102 inlet section

1шт.

29

G33105

VALVE POPPET

Poppet, G33102 inlet section

1шт.

30

G33106

SPRING

G33102 inlet section

1шт.

31

G33107

PLUG

G33102 inlet section

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, G33102 inlet section

1шт.
