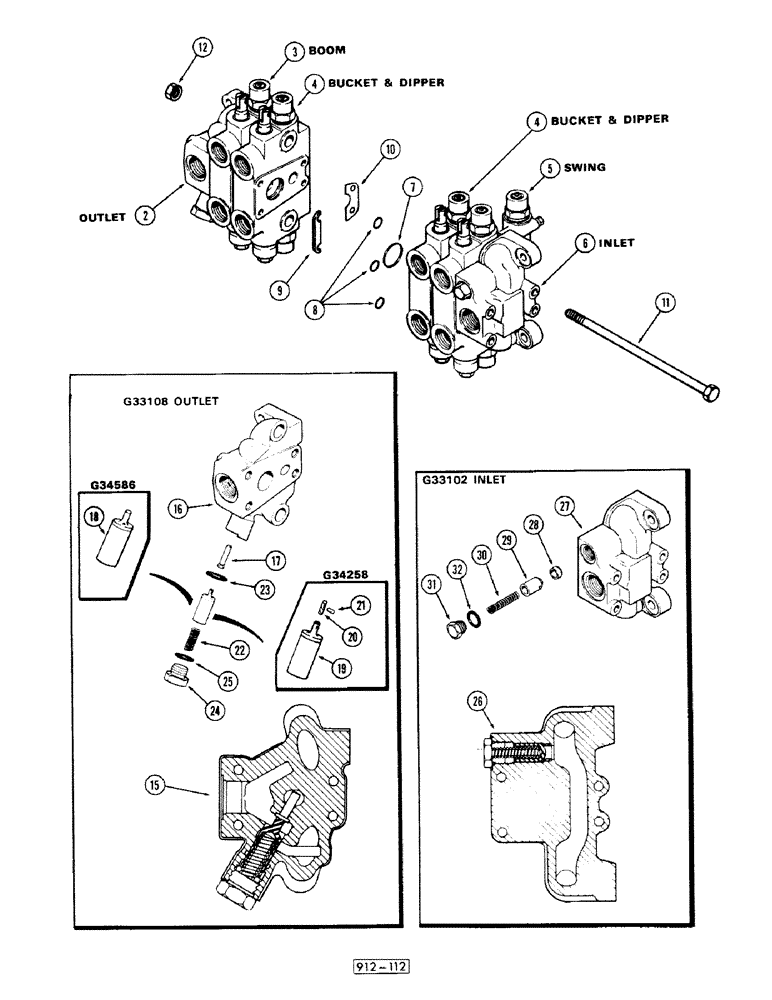

Запчасти Case 35 (184) - G33071 CASE BACKHOE CONTROL VALVE

G33071

VALVE

Backhoe control-valve

1шт.

2

G33108

MANIFOLD

Section-outlet, Voir Figure 186/See Figure 186/Siehe

1шт.

3

G33099

FILTER, ELEMENT

Section-boom, Vour Figure 194/See Figure 194/Siehe

1шт.

4

G33097

VALVE

Section-dipper and bucket, Voir Figure 188/See Figure 188/Siehe

2шт.

5

G33072

LOCK VALVE

Section-swing, Voir Figure 190/See Figure 190/Siehe

1шт.

6

G33102

MANIFOLD

Section-inlet, Voir Figure 186/See Figure 186/Siehe

1шт.

7

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

"O" Ring

5шт.

8

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

"O" Ring

15шт.

9

G33964

SHIM,.002" Thk

(cote sup.)/(top)/(Oben) .002" Thk

5шт.

10

G33965

SHIM,22.86mm OD x 0.06mm Thk

(.002) (cote inf.)/(bottom)/(Unten) 0.051mm Thk

5шт.

11

G33114

BOLT

-hex. "3/8" x 13-3/8" NC"

4шт.

12

25-106

NUT,3/8"-16, G5

-hex. "3/8" NC"

4шт.
