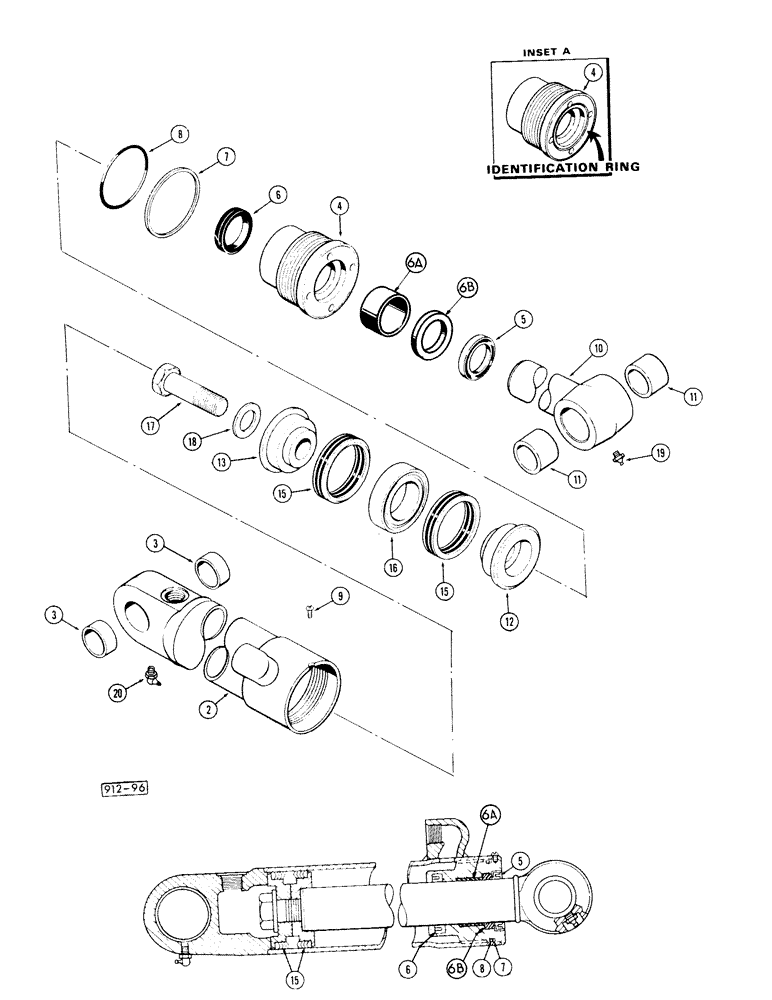

Запчасти Case 35 (180) - BACKHOE BUCKET CYLINDER

G33196

CYLINDER

-hyd. bucket ass'y

1шт.

2

G32399

CYLINDER

Tube cylinder ass'y

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

2шт.

G34629

GLAND

-packing ass'y

1шт.

4

NUS-NSS

Gland NEG

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Rod

1шт.

Part of seal kit G34651

1шт.

6a

G34322

BEARING

Bushing

1шт.

Part of seal kit G34651

1шт.

6

D36971

RING

Seal-rod

1шт.

Part of seal kit G34651

1шт.

6b

NUS-NSS-NEG

Bushing

1шт.

7

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

back-up

1шт.

Part of seal kit G34651

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" Ring

1шт.

Part of seal kit G34651

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

Screw

1шт.

10

G33162

ROD

piston ass'y

1шт.

11

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

2шт.

12

G33167

PISTON

-split (Rod end)

1шт.

13

D28367

PISTON

-split (Bolt end)

1шт.

15

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

Vee packing

2шт.

Part of seal kit G34651

1шт.

16

D47208

RING

-center

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting grease "1/8"

1шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G34651

SEAL

kit, Includes: Ref. 5 - 6A, 7, 8 and 15

1шт.
