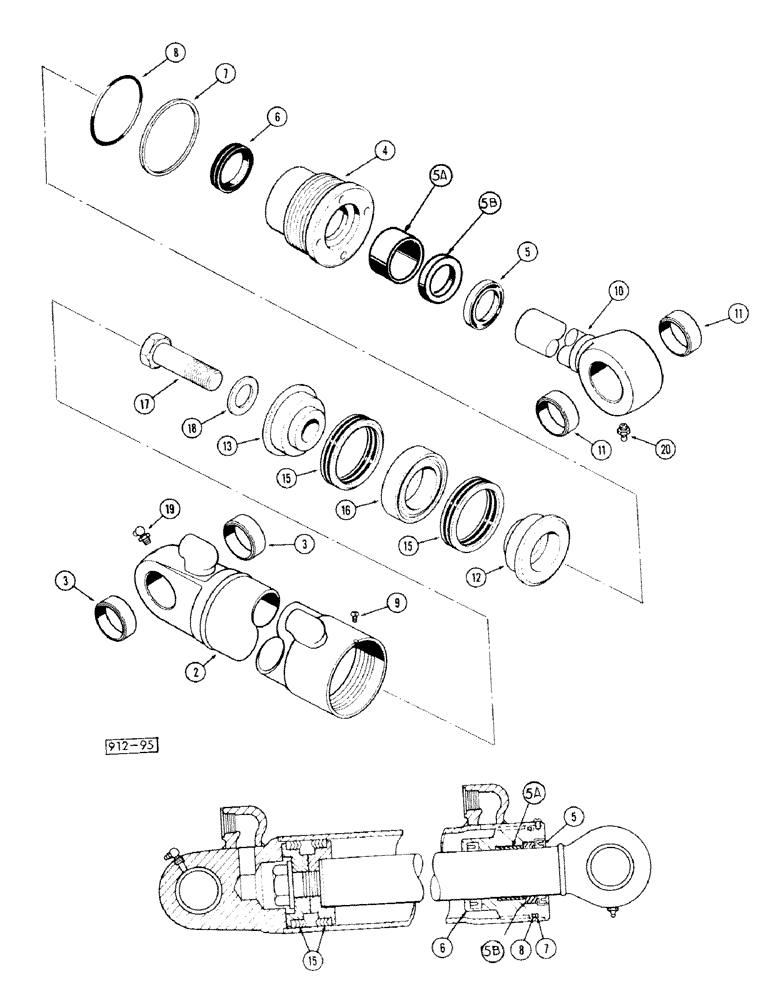

Запчасти Case 35 (178) - BACKHOE DIPPER CYLINDER

G32079

CYLINDER

-hyd.dipper ass'y

1шт.

2

G32831

SLEEVE CYLINDER

Tube, cylinder ass'y

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

2шт.

G34331

GLAND

packing ass'y

1шт.

4

NUS-NSS

Gland NEG

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Rod

1шт.

Part of seal kit G34594

1шт.

5a

G34322

BEARING

Bushing

1шт.

Part of seal kit G34594

1шт.

5b

NUS-NSS-NEG

Bushing

1шт.

6

D36971

RING

Seal-rod

1шт.

Part of seal kit G34594

1шт.

7

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of seal kit G34594

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" Ring

1шт.

Part of seal kit G34594

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

Screw

1шт.

10

G33154

ROD

piston ass'y

1шт.

11

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

2шт.

12

G33159

PISTON

-split (Rod end)

1шт.

13

D46930

PISTON

-split (Bolt end)

1шт.

15

D47204

PACKING,89.15mm ID x 100.86mm OD

Vee packing

2шт.

Part of seal kit G34594

1шт.

16

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

Ring-center

1шт.

17

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

1шт.

18

G32351

WASHER

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting-grease "1/8"

1шт.

G34594

SEAL

kit, Includes: Ref. 5, 5A, 6 - 8 and 15

1шт.
