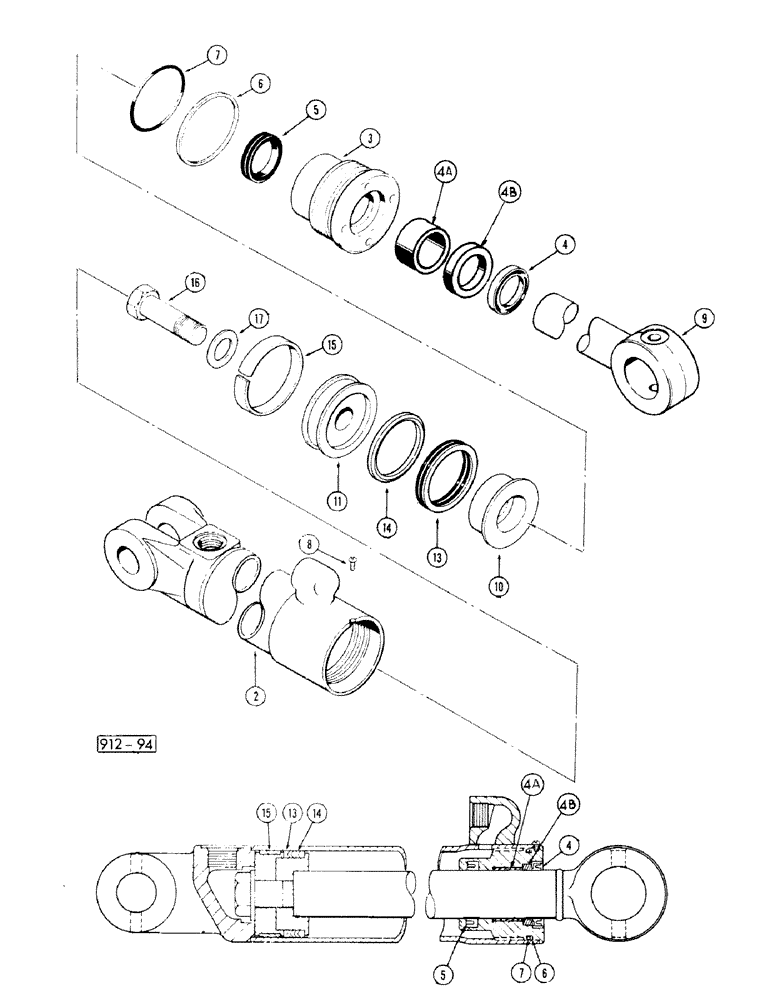

Запчасти Case 35 (176) - BACKHOE BOOM CYLINDER

G33881

CYLINDER

-hyd.boom ass'y

2шт.

2

G33882

TUBE

cylinder ass'y

1шт.

G34649

GLAND

packing ass'y

1шт.

3

NUS-NSS

Gland NEG

1шт.

4

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

-rod

1шт.

Part of seal kit G34653

1шт.

4a

PG34621

WASHER

1шт.

Part of seal kit G34653

1шт.

4b

NUS-NSS-NEG

Bushing

1шт.

5

D36970

CUP

Seal-rod

1шт.

Part of seal kit G34653

1шт.

6

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

Ring back-up

1шт.

Part of seal kit G34653

1шт.

7

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" Ring

1шт.

Part of seal kit G34653

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

Screw

1шт.

9

G33885

ROD

-piston

1шт.

10

G33180

PISTON

-split (Rod end)

1шт.

11

G33182

PISTON

-split (Bolt end)

1шт.

G33186

MISC PACKAGING

Packing ass'y

1шт.

Part of seal kit G34653

1шт.

13

NUS-NSS

Vee packing NEG

1шт.

14

NUS-NSS

Adapter NEG

1шт.

15

G33181

RING

-wear, piston

1шт.

16

28-1648

BOLT,Hex, 1" - 14 x 3", Gr 8

Screw "1"x3"

1шт.

17

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

G34653

SEAL

kit, Includes: Ref. 4, 4A, 5 - 7 and P/N G33186

1шт.
