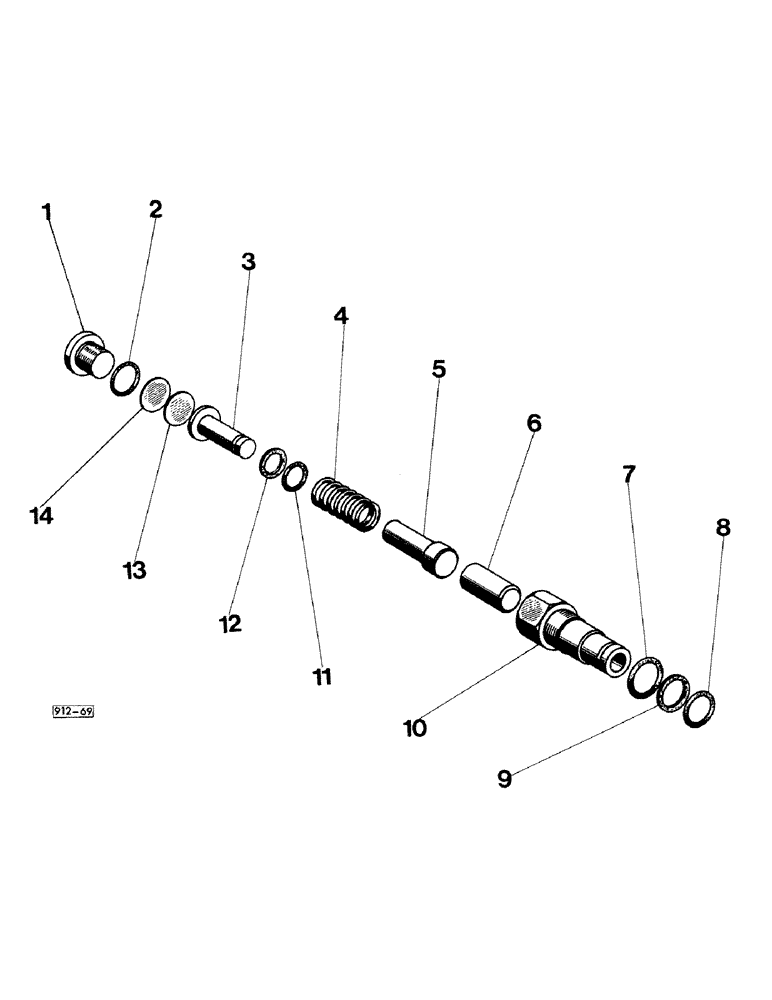

Запчасти Case 35 (174) - CARTRIDGE - RELIEF VALVE

D47557

VALVE

Cartridge - relief valve

2шт.

1

D40354

PLUG

1шт.

3

D37150

GUIDE

-spring

1шт.

4

D37148

SPRING

1шт.

5

D37151

PLUNGER

1шт.

6

D37075

SEAT

-plunger

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

Seal "O" ring

1шт.

9

D37071

RING

back up

1шт.

10

D47667

CAP

Body

1шт.

11

T41959

O-RING

Seal "O" ring

1шт.

12

D37147

RING

back up

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
