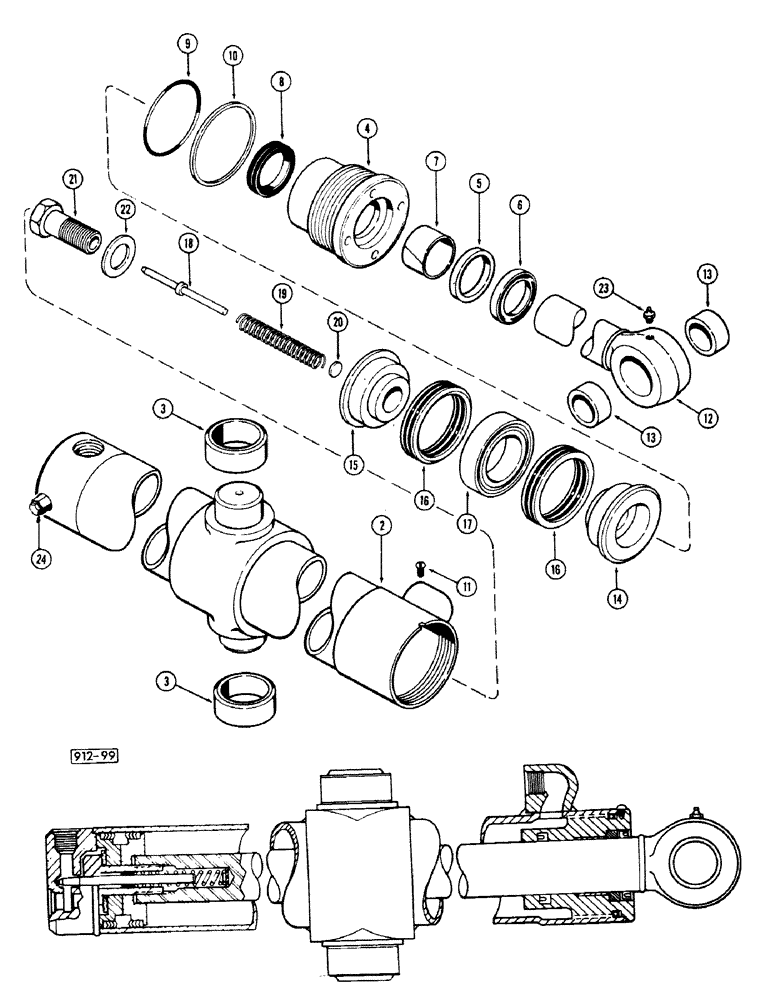

Запчасти Case 35 (172) - BACKHOE SWING CYLINDER

G34788

CYLINDER

-hyd. swing ass'y

2шт.

2

G34789

Tube cylinder ass'y

1шт.

3

G34593

BUSHING

2шт.

G34331

GLAND

ass'y

1шт.

4

NUS-NSS

Gland NEG

1шт.

5

NUS-NSS-NEG

Bushing

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Rod

1шт.

Part of seal kit G34594

1шт.

7

G34322

BEARING

Bushing

1шт.

Part of seal kit G34594

1шт.

8

D36971

RING

Seal rod

1шт.

Part of seal kit G34594

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" Ring

1шт.

Part of seal kit G34594

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of seal kit G34594

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

Bolt

1шт.

12

G34775

ROD ASSY.

Rod-piston ass'y

1шт.

13

G34854

BUSHING,44.58mm ID x 53.98mm OD x 22.35mm L

2шт.

14

G33159

PISTON

-split (Rod end)

1шт.

15

D49161

PISTON

-split (Bolt end)

1шт.

16

D47204

PACKING,89.15mm ID x 100.86mm OD

Vee packing

2шт.

Part of seal kit G34594

1шт.

17

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

Ring center

1шт.

18

D38679

PIN

-restrictor

1шт.

19

D38683

SPRING

1шт.

20

D38684

SPACER

Washer

1шт.

21

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

1шт.

22

G32351

WASHER

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting grease "1/8"

1шт.

24

D47557

VALVE

-relief, ou, Voir Figure 174/See Figure

1шт.

D55017

VALVE

-relief, Voir Figure 174/See Figure 174/Siehe

1шт.

G34594

SEAL

kit, Includes: Ref. 6 - 10 and 16

1шт.
