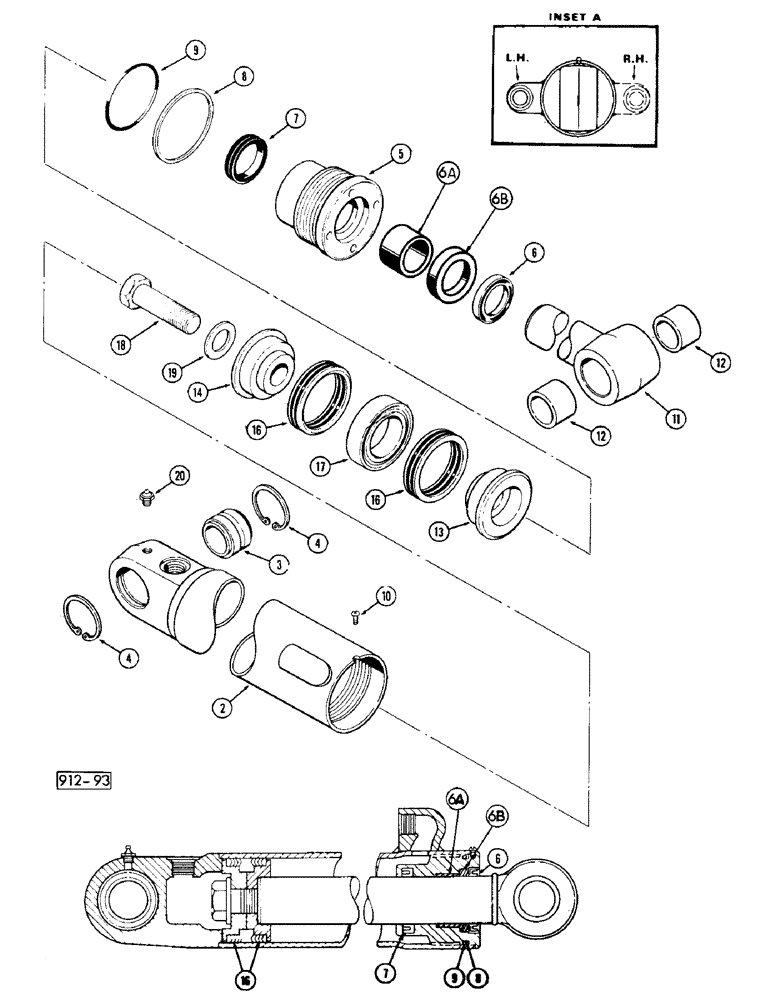

Запчасти Case 35 (168) - 4" BACKHOE STABILIZER CYLINDER

G34470

HYDRAULIC CYLINDER

4" backhoe swing cylinder RH ass'y

1шт.

G34471

CYLINDER ASSY.

4" backhoe swing cylinder L.H ass'y

1шт.

2

G34468

TUBE,28.47" L

cylinder RH ass'y

1шт.

G34469

TUBE,28.47" L

cylinder LH ass'y

1шт.

3

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

1шт.

4

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, 2.44", Int, #244

2шт.

G34331

GLAND

packing ass'y

1шт.

5

NUS-NSS

Gland NEG

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Rod

1шт.

Part of seal kit G34594

1шт.

6a

G34322

BEARING

Bushing

1шт.

Part of seal kit G34594

1шт.

6b

NUS-NSS-NEG

Bushing

1шт.

7

D36971

RING

Seal-rod

1шт.

Part of seal kit G34594

1шт.

8

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of seal kit G34594

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" Ring

1шт.

Part of seal kit G34594

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

Screw

1шт.

11

G34475

ROD

piston ass'y

1шт.

12

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

2шт.

13

G33159

PISTON

-split (Rod end)

1шт.

14

D46930

PISTON

-split (Bolt end)

1шт.

16

D47204

PACKING,89.15mm ID x 100.86mm OD

Vee packing

2шт.

Part of seal kit G34594

1шт.

17

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

Ring-center

1шт.

18

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

1шт.

19

G32351

WASHER

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting grease "1/8"

1шт.

G34594

SEAL

kit, Includes: Ref. 6, 6A, 7 - 9 and 16

1шт.
