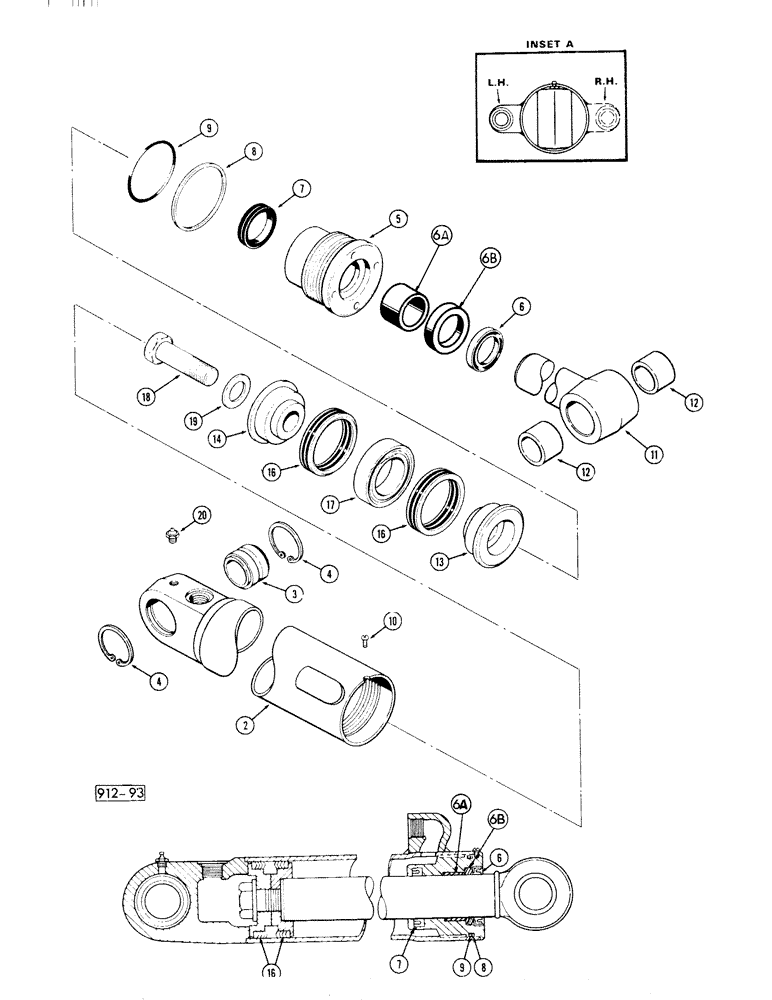

Запчасти Case 35 (166) - BACKHOE STABILIZER CYLINDER (35)

G33982

CYLINDER BLOCK

Cylinder-hyd.stabilizer RH ass'y

1шт.

G33983

CYLINDER BLOCK

Cylinder-hyd.stabilizer LH ass'y

1шт.

2

G33984

TUBE,28.47" L

cylinder RH ass'y

1шт.

G33985

TUBE

cylinder LH ass'y

1шт.

3

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

1шт.

4

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, 2.44", Int, #244

2шт.

G34629

GLAND

packing ass'y

1шт.

5

NUS-NSS

Gland NEG

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Rod

1шт.

Part of seal kit G34651

1шт.

6a

G34322

BEARING

Bushing

1шт.

Part of seal kit G34651

1шт.

6b

NUS-NSS-NEG

Bushing

1шт.

7

D36971

RING

Seal rod

1шт.

Part of seal kit G34651

1шт.

8

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

back-up

1шт.

Part of seal kit G34651

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" Ring

1шт.

Part of seal kit G34651

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

Screw

1шт.

11

G33173

ROD

piston ass'y

1шт.

12

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

2шт.

13

G33167

PISTON

-split (Rod end)

1шт.

14

D28367

PISTON

-split (Bolt end)

1шт.

16

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

Vee packing

2шт.

Part of seal kit G34651

1шт.

17

D47208

RING

-center

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting-grease "1/8"

1шт.

G34651

SEAL

kit, Includes: Ref. 6, 6A, 7 - 9 and 16

1шт.
