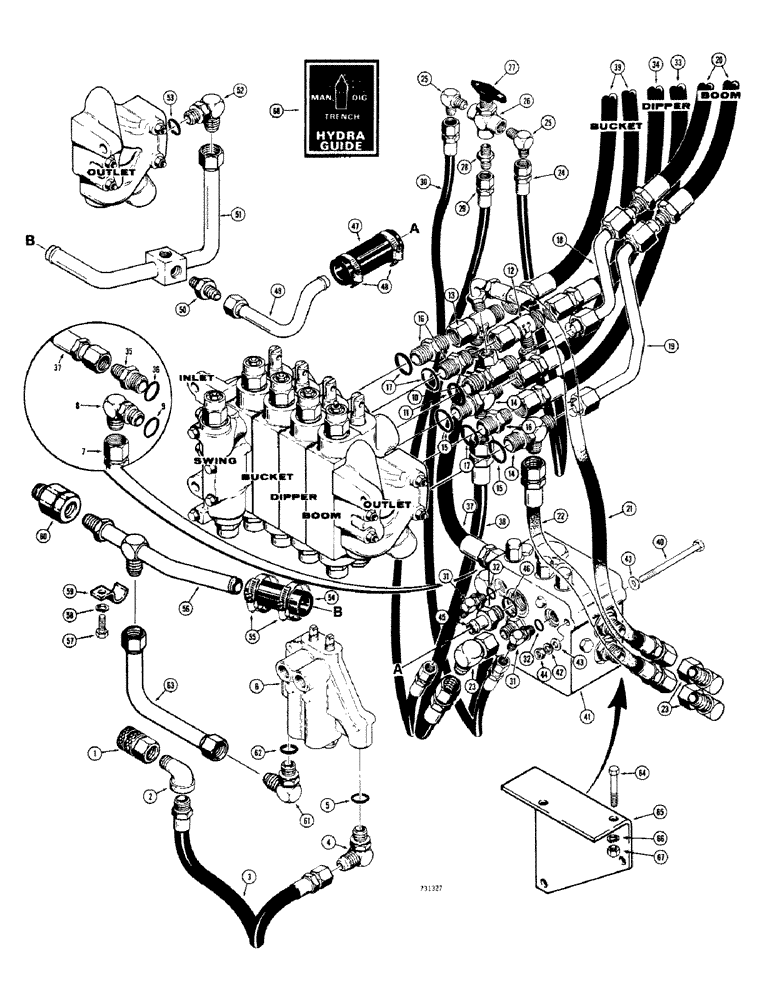

Запчасти Case 35 (158) - HYDRA-GUIDE (35) WITH CASE AND CESSNA CONTROL VALVES

1

D52800

COUPLING, QUICK, FEM

Coupling-female, Voir Figure 62/See Figure 62/Siehe

1шт.

2

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

1шт.

3

D56094

HOSE

1шт.

4

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

6

REF

INSTRUCTION

Valve ass'y-stabilizer control, ., Voir Figure 182/See Figure 182/Siehe

1шт.

7

D57884

HOSE ASSY.

Hose

1шт.

8

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

10

D55578

Tee

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" Ring

1шт.

12

218-5475

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 1/2"-20 Br

1шт.

13

218-5219

TEE,37 Degree, 7/8"-14 x 3/4"-16, Fem Sw Run x 3/4"-16 Br

1шт.

14

218-5295

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16

2шт.

15

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" Ring

1шт.

16

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Connector-straight

3шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" Ring

1шт.

18

D60425

TUBE

1шт.

19

D55574

TUBE

1шт.

20

D55562

HOSE,15.88mm ID x 965.2mm L, SAE 100R2

2шт.

21

D56127

HOSE ASSY.

Hose

1шт.

22

D56128

HOSE

1шт.

23

218-5376

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

3шт.

24

D54100

FLEXIBLE HOSE

Hose

1шт.

25

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

2шт.

26

D55981

LOCK VALVE

Valve ass'y-selector

1шт.

27

D57384

Handle

1шт.

28

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

Connector-straight

1шт.

29

D56126

HOSE

1шт.

30

D52711

HOSE

1шт.

31

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

2шт.

32

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

33

E30215

HOSE

1шт.

34

E30214

HOSE

1шт.

35

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Connector-straight

1шт.

36

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

37

T40301

HOSE,0.38" ID x 17.00", SAE 100R1

1шт.

38

D56130

HOSE

1шт.

39

E30213

HOSE

2шт.

40

13-680

CAPSCREW,Hex, 3/8" - 16 x 5", Gr 5

BOLT, Hex, 3/8"-16 x 5", G5

2шт.

41

D54561

VALVE

-hydra-guide, Voir Figure 196/See Figure 196/Siehe

1шт.

42

92-6

LOCK WASHER,3/8"

2шт.

43

195-25

WASHER,3/8"

4шт.

44

25-106

NUT,3/8"-16, G5

-hex. "3/8" NC"

2шт.

45

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

Hose-stem

1шт.

46

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

47

D24728

HOSE

1шт.

48

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

49

D58857

TUBE

1шт.

50

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

Adapter-male

1шт.

51

D58817

TUBE

1шт.

52

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1шт.

53

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" Ring

1шт.

54

R12351

LARGE HOSE

Hose

1шт.

55

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Clamp

2шт.

56

D61221

TUBE

1шт.

57

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

58

92-6

LOCK WASHER,3/8"

1шт.

59

D55880

CLAMP

1шт.

60

D52694

QUICK MALE COUPLING

Coupling-male, Voir Figure 62/See Figure 62/Siehe

1шт.

61

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1шт.

62

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

63

D61325

TUBE

1шт.

64

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

-hex. "3/8" x 2-1/2" NC"

2шт.

65

D59215

Bracket

1шт.

66

92-6

LOCK WASHER,3/8"

2шт.

67

25-106

NUT,3/8"-16, G5

-hex. "3/8" NC"

2шт.

68

321-2057

DECAL

1шт.
