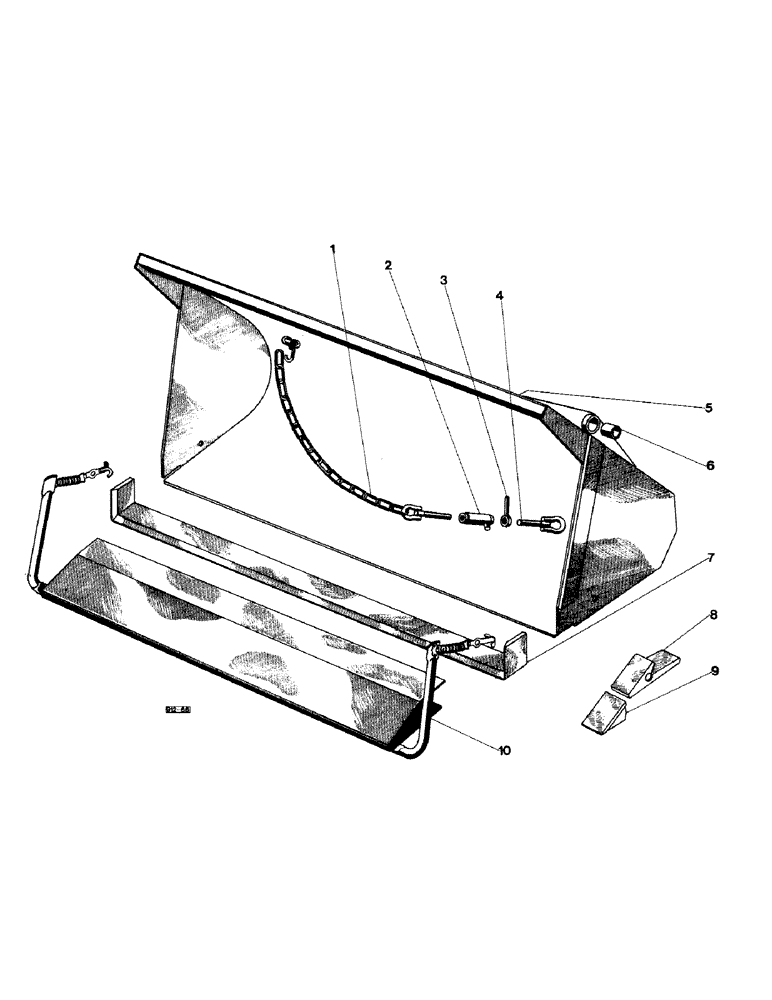

Запчасти Case 35 (016) - LOADER BUCKET (FOR GERMANY)

1

E30894

SPARE PART

Chain

1шт.

2

E10961

ROD

Turnbuckle

1шт.

3

E30721

NUT

1шт.

4

E10940

ROD

1шт.

5

REF

INSTRUCTION

Bucket (74" wide) with teeth ass'y, ., Cder/Order/Bestellen Sie/E32279 (Long lip), - Pour/For/Fur 35 E30899 -

1шт.

6

E30932

BRACKET

Bushing

8шт.

7

D95072

EDGE, CUTTING,4” W x 72.47” L x 6” H x 3/4” Thk

Cutting Edge

1шт.

10

E30695

Guard

1шт.
