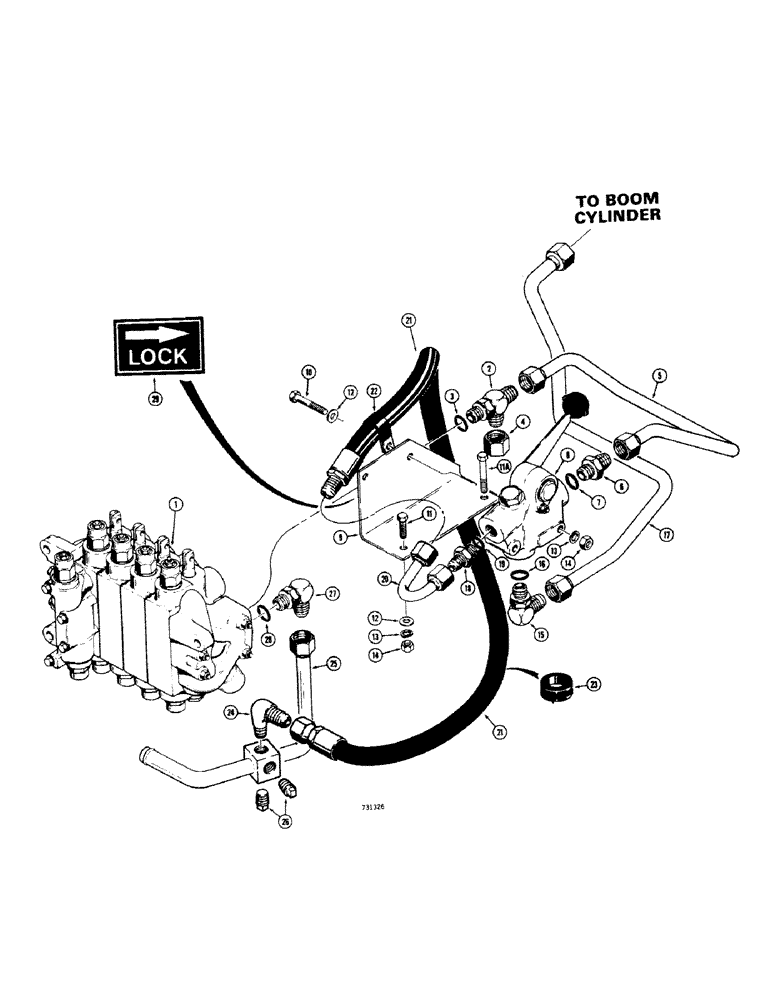

Запчасти Case 35 (152) - HYDRAULIC BOOM LOCK (35) WITH CASE AND CESSNA CONTROL VALVES

1

REF

INSTRUCTION

Valve ass'y - backhoe control, ., Voir Figure 184/See Figure 184/Siehe

1шт.

2

218-5295

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" Ring

1шт.

4

218-755

CAP,37 Degree, 3/4"-16

Plug, Non utilise avec l'Hydra Guide/Not used with Hydra Guide/Nicht verwendet mit

1шт.

5

D58207

TUBE

1шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

8

REF

INSTRUCTION

Valve-lockout, ., Voir Figure 200/See Figure 200/Siehe

1шт.

9

D59229

Bracket

1шт.

10

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

-hex. "3/8" x 3" NC"

2шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

11a

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

12

195-25

WASHER,3/8"

4шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

25-106

NUT,3/8"-16, G5

-hex. "3/8" NC"

4шт.

15

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

17

D58205

Tube

1шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Straight 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

20

D60079

TUBE

1шт.

21

D60078

HOSE ASSY.

Hose

1шт.

22

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

1шт.

23

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

24

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

1шт.

25

D56157

Tube

1шт.

26

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

Plug

2шт.

27

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1шт.

28

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" Ring

1шт.

29

321-2190

DECAL

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
