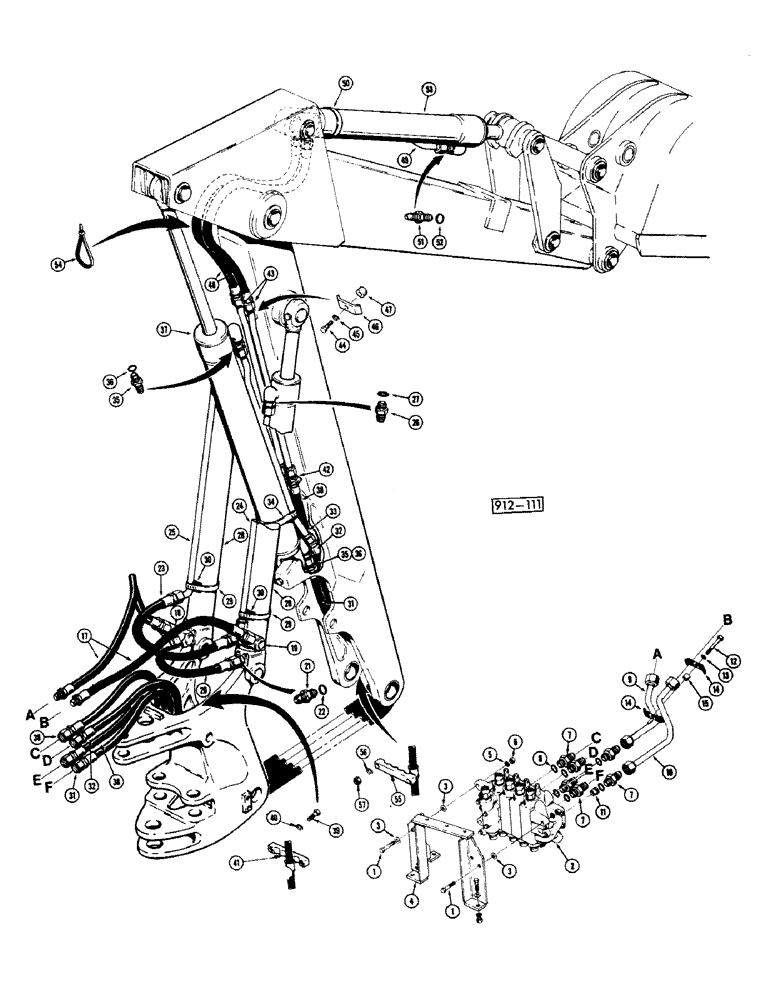

Запчасти Case 35 (148) - BOOM, CROWD AND BUCKET HYDRAULICS WITH CASE AND CESSNA CONTROL VALVES

1

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

2

REF

INSTRUCTION

Valve ass'y-backhoe control, ., Voir Figure 184/See Figure 184/Siehe

1шт.

3

95-8

WASHER,1/2"

- plain 1/2"

4шт.

4

D56214

BRACKET

-valve

1шт.

5

92-8

LOCK WASHER,1/2"

3шт.

6

25-108

NUT,1/2"-13, G5

-hex. "1/2" NC"

3шт.

7

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Connector-straight

6шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

D55979

TUBE

1шт.

10

D55977

TUBE

1шт.

11

D56252

FITTING

Restrictor

1шт.

12

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

D40236

CLAMP

2шт.

15

D34244

SPACER

1шт.

17

D55562

HOSE,15.88mm ID x 965.2mm L, SAE 100R2

2шт.

18

D60948

JOINT

-swivel, Voir Figure 94/See Figure 94/Siehe

1шт.

19

D60947

FITTING

Joint-swivel, Voir Figure 94/See Figure 94/Siehe

1шт.

20

CASD50053

Hose

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

23

D55563

HOSE

1шт.

24

D55564

TUBE

-RH

1шт.

25

D55566

TUBE

-LH

1шт.

26

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Connector-straight

2шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

28

REF

INSTRUCTION

Cylinder-boom, ., Voir Figure 176/See Figure 176/Siehe

2шт.

29

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

Clamp

2шт.

30

D38648

BLOCK

Saddle

2шт.

31

E30215

HOSE

(35)

1шт.

E18394

HOSE

(35 S)

1шт.

32

E30214

HOSE

(35)

1шт.

E18393

HOSE

(35 S)

1шт.

33

D50379

TUBE

1шт.

34

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

Clamp

1шт.

35

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Connector-straight

2шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

37

REF

INSTRUCTION

Cylinder-dipper, ., Voir Figure 178/See Figure 178/Siehe

1шт.

38

E30213

HOSE

(35)

2шт.

E18392

HOSE

(35 S)

2шт.

39

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

40

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

41

D50388

CLAMP

1шт.

42

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT, LOCK, , Special Blkhd, 1 1/16"-12

2шт.

43

D50386

TUBE

2шт.

44

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

-hex. "3/8" x 1-1/2" NC"

1шт.

45

92-6

LOCK WASHER,3/8"

1шт.

46

D42504

CLAMP

1шт.

47

D36040

BUSHING

Spacer

1шт.

48

E31450

HOSE

2шт.

49

D58609

TUBE

1шт.

50

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

Clamp

1шт.

51

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Connector-straight

2шт.

52

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

53

REF

INSTRUCTION

Cylinder-bucket, ., Voir Figure 180/See Figure 180/Siehe

1шт.

54

L11541

CABLE TIE,203.2mm L, Nylon

Strap

1шт.

55

E17756

CLAMP

1шт.

56

92-8

LOCK WASHER,1/2"

2шт.

57

25-108

NUT,1/2"-13, G5

-hex. "1/2" NC"

2шт.
