(144) - STABILIZER CYLINDER HYDRAULICS (35) WITH CASE, COMMERCIAL & CESSNA CONTROL VALVES

Запчасти Case 35 (144) - STABILIZER CYLINDER HYDRAULICS (35) WITH CASE, COMMERCIAL & CESSNA CONTROL VALVES

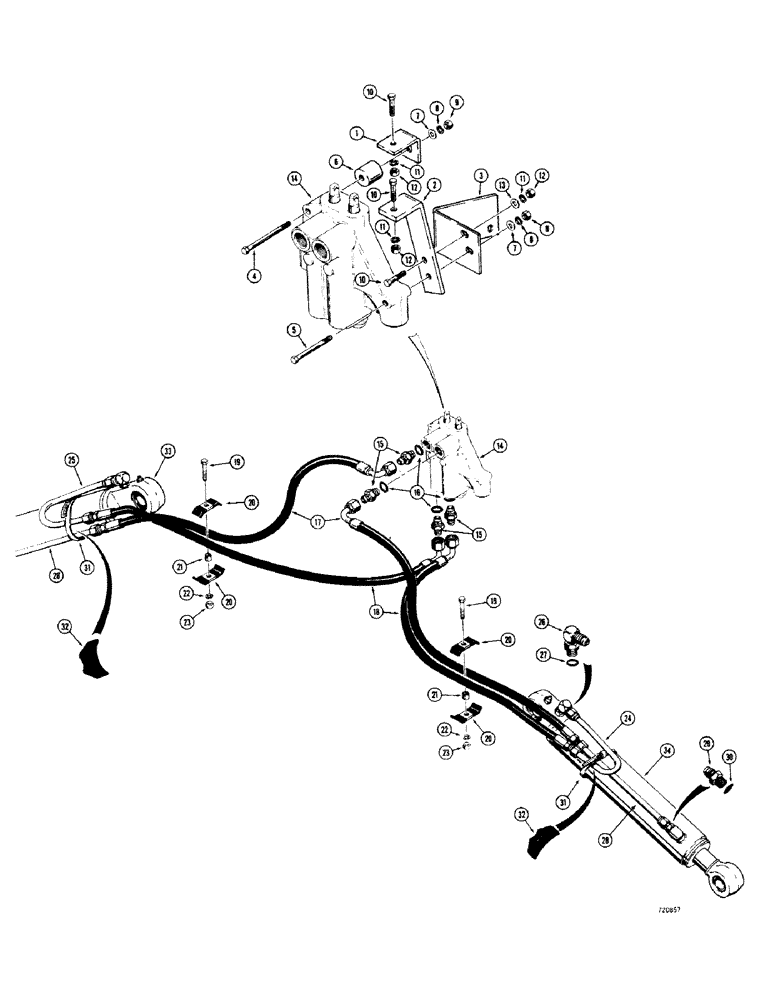

Схема запчастей Case 35 - (144) - STABILIZER CYLINDER HYDRAULICS (35) WITH CASE, COMMERCIAL & CESSNA CONTROL VALVES
32
1
8
20
31
22
18
10
23
24
34
30
3
15
8
7
10
33
16
15
22
20
21
19
9
9
13
31
32
28
6
10
26
14
29
12
20
19
23
4
11
7
11
5
12
27
20
11
25
17
12
2
21
28
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D56223

BRACKET

-LH

1шт.

2

D56222

BRACKET

-RH

1шт.

3

D56224

BRACKET

Support

1шт.

4

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2"

1шт.

5

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT, Hex, 5/16"-18 x 3", G5

1шт.

6

32691

SPACER

1шт.

7

195-21

WASHER,5/16"

plain 5/16"

2шт.

8

92-5

LOCK WASHER,5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

-hex. "5/16" NC"

2шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

25-106

NUT,3/8"-16, G5

-hex. "3/8" NC"

3шт.

13

95-6

WASHER,3/8"

1шт.

14

REF

INSTRUCTION

Valve-stabilizer control, ., Voir Figure 182/See Figure 182/Siehe

1шт.

15

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring

4шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

D56042

HOSE ASSY.

Hose

2шт.

18

D56043

HOSE,9.53mm ID x 863.6mm L, SAE 100R2

2шт.

19

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

-hex. "3/8" x 2-1/2" NC"

2шт.

20

D40236

CLAMP

4шт.

21

D34244

SPACER

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

-hex. "3/8" NC"

2шт.

24

D55360

TUBE

-LH

1шт.

25

D55357

TUBE

-RH

1шт.

26

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

2шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

28

D55865

TUBE

2шт.

29

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

straight 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

31

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

Clamp

2шт.

32

D38648

BLOCK

Saddle

2шт.

33

REF

INSTRUCTION

Cylinder-LH stabilizer, ., Voir Figure 166/See Figure 166/Siehe

1шт.

34

REF

INSTRUCTION

Cylinder-RH stabilizer, ., Voir Figure 166/See Figure 166/Siehe

1шт.
