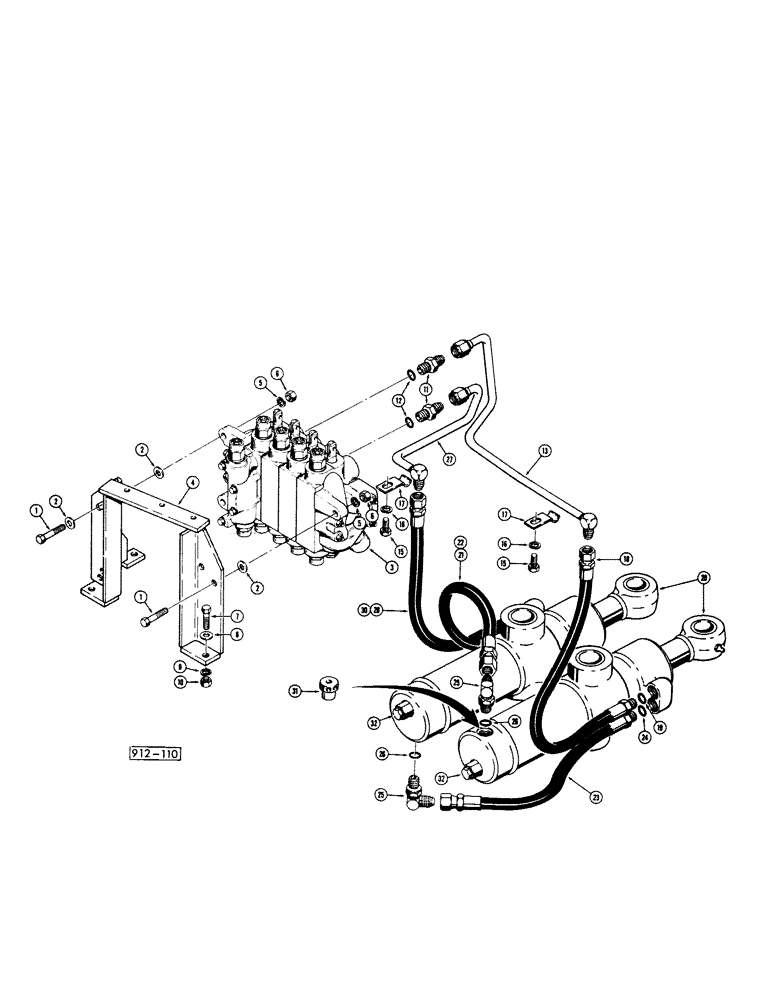

Запчасти Case 35 (142) - HYDRAULICS OF SWING CYLINDERS (35) WITH CASE AND CESSNA CONTROL VALVES
№
Артикул
Название
Примечание
Количество
1
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
3шт.
2
95-8
WASHER,1/2"
- plain 1/2"
4шт.
3
REF
INSTRUCTION
Valve ass'y- Backhoe control, ., Voir Figure 184/See Figure 184/Siehe
1шт.
4
D56214
BRACKET
Support
1шт.
5
92-8
LOCK WASHER,1/2"
3шт.
6
25-108
NUT,1/2"-13, G5
-hex. "1/2" NC"
3шт.
7
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
3шт.
8
95-8
WASHER,1/2"
- plain 1/2"
3шт.
9
92-8
LOCK WASHER,1/2"
3шт.
10
25-108
NUT,1/2"-13, G5
-hex. "1/2" NC"
3шт.
11
218-5078
HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB
Connector-straight
2шт.
12
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
"O" Ring
1шт.
13
D56012
Tube
1шт.
15
13-812
BOLT,Hex, 1/2" - 13 x 3/4", Gr 5
-hex. "1/2" x 3/4" NC"
2шт.
16
92-8
LOCK WASHER,1/2"
2шт.
17
D50551
CLIP
Clamp
2шт.
18
D39140
HOSE,12.7mm ID x 609.6mm L, SAE 100R2
1шт.
20
REF
INSTRUCTION
Cylinder-swing, ., Voir Figure 172/See Figure 172/Siehe
2шт.
21
D39140
HOSE,12.7mm ID x 609.6mm L, SAE 100R2
1шт.
23
D55749
HOSE
1шт.
25
218-5121
ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB
2шт.
26
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
27
D58822
TUBE
1шт.
29
D39140
HOSE,12.7mm ID x 609.6mm L, SAE 100R2
1шт.
31
D41462
FITTING
Restrictor, used with standard dipper
2шт.
D45555
FITTING
Restrictor, used with extendahoe
2шт.
32
REF
INSTRUCTION
Valve-relief, ., Voir Figure 174/See Figure 174/Siehe
2шт.
19
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
22
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
24
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
30
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
Выбрано товаров: 31
