(138) - BACKHOE INTERMEDIATE HYDRAULICS (35) WITH CASE AND CESSNA CONTROL VALVES

Запчасти Case 35 (138) - BACKHOE INTERMEDIATE HYDRAULICS (35) WITH CASE AND CESSNA CONTROL VALVES

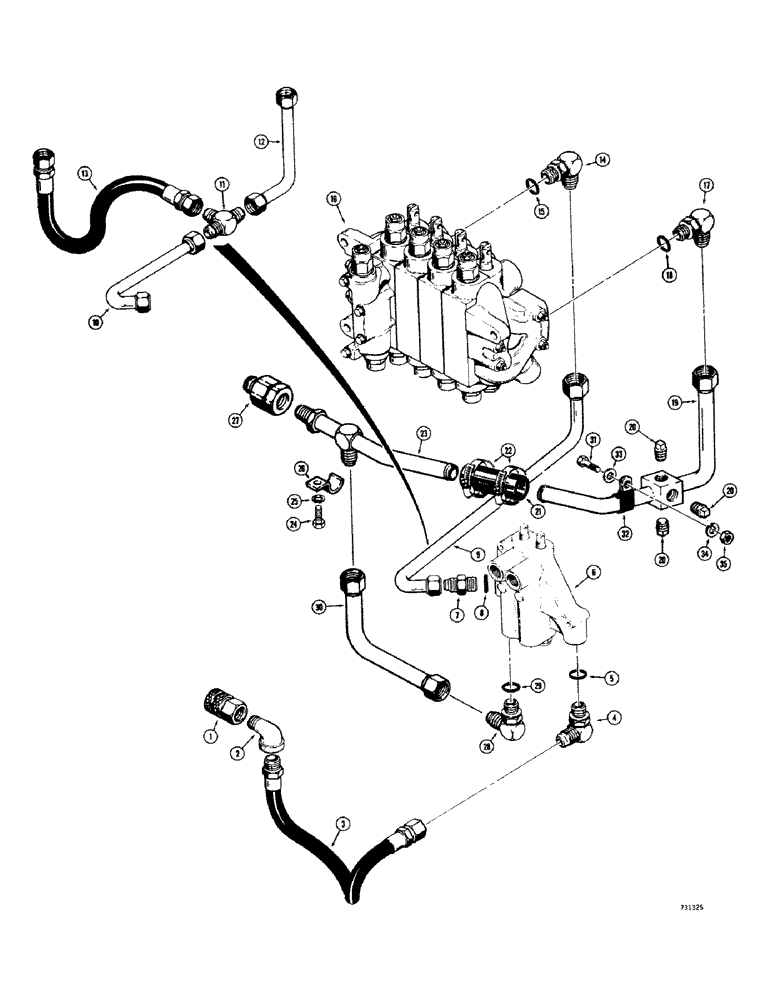

Схема запчастей Case 35 - (138) - BACKHOE INTERMEDIATE HYDRAULICS (35) WITH CASE AND CESSNA CONTROL VALVES
26
6
15
22
25
31
21
10
18
3
5
1
2
30
17
23
9
19
12
29
20
27
28
14
4
20
16
20
13
8
34
32
7
24
35
11
33
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D52800

COUPLING, QUICK, FEM

Coupling-female, Voir Figure 62/See Figure 62/Siehe

1шт.

2

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

1шт.

3

D56094

HOSE

1шт.

4

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

6

REF

INSTRUCTION

Valve ass'y-stabilizer control, ., Voir Figure 182/See Figure 182/Siehe

1шт.

7

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

9

D61060

TUBE

1шт.

10

D57877

TUBE

Utilise avec Hydra Guide seulement/Used with Hydra Guide only/Verwendet nur mit

1шт.

11

218-596

TEE,1 1/16"-12 37 Degree

Utilise seulement avec D58877 et D57882/Used with D58877 and D57882 only/Verwendet nur mit D58877 und

1шт.

12

D57882

TUBE

1шт.

13

D57884

HOSE ASSY.

Hose, Utilise avec Hydra Guide seulement/Used with Hydra Guide only/Verwendet nur mit

1шт.

14

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1шт.

15

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" Ring

1шт.

16

G33071

VALVE

ass'y-backhoe control, Voir Figure 184/See Figure 184/Siehe

1шт.

17

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1шт.

18

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" Ring

1шт.

19

D58817

TUBE

1шт.

20

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

Plug

3шт.

21

R12351

LARGE HOSE

Hose

1шт.

22

E17412

CLAMP

2шт.

23

D61221

TUBE

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

A12308

CLAMP

1шт.

27

D52694

QUICK MALE COUPLING

Coupling-male

1шт.

28

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

30

D61325

TUBE

1шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

32

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

1шт.

33

195-25

WASHER,3/8"

1шт.

34

92-6

LOCK WASHER,3/8"

1шт.

35

25-106

NUT,3/8"-16, G5

-hex. "3/8" NC"

1шт.
