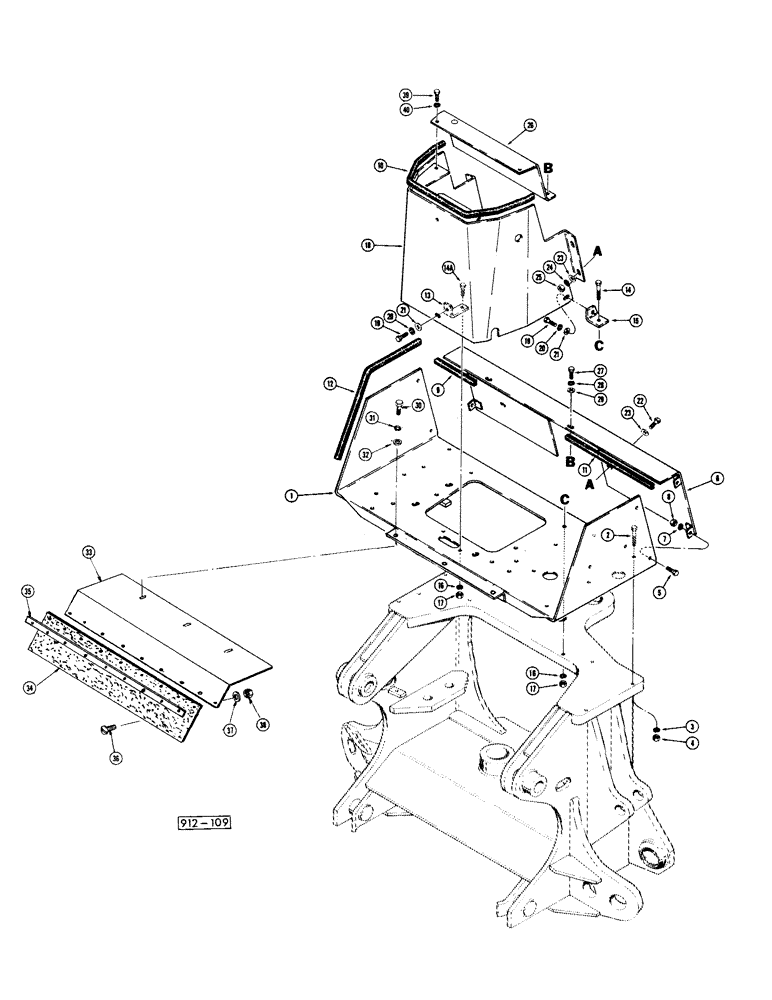

Запчасти Case 35 (128) - BACKHOE CONTROL TOWER (35) WITH CASE AND CESSNA CONTROL VALVES

1

E32328

Plate-top

1шт.

2

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

-hex. "3/8" NC"

4шт.

5

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

195-25

WASHER,3/8"

4шт.

6

D60177

Panel-front

1шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

-hex. "3/8" NC"

4шт.

9

D60179

RUBBER STRIP

Trim (6.5" long)

1шт.

10

D52240

Trim (29" long)

1шт.

11

D60180

STRIP

Trim (14.5"long)

1шт.

12

D35424

LINING

Trim (16" long)

2шт.

13

D52697

STRAP

Angle

1шт.

14

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

14a

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

15

D50287

SUPPORT

Bracket

2шт.

16

92-6

LOCK WASHER,3/8"

3шт.

17

25-106

NUT,3/8"-16, G5

-hex. "3/8" NC"

3шт.

18

D60181

PANEL ASSY.

Panel-center

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

20

92-6

LOCK WASHER,3/8"

3шт.

21

195-25

WASHER,3/8"

3шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

23

195-25

WASHER,3/8"

8шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

25-106

NUT,3/8"-16, G5

-hex. "3/8" NC"

4шт.

26

D60174

Panel-top

1шт.

27

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

195-25

WASHER,3/8"

2шт.

30

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

31

92-6

LOCK WASHER,3/8"

3шт.

32

95-6

WASHER,3/8"

3шт.

33

E30395

SHIELD

Sheet-protective

1шт.

34

E18207

GUARD ASSY.

Flap

1шт.

35

E18208

PLATE ASSY.

Strip-fastening

1шт.

36

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

Bolt-rd hd "1/4" x 3/4" NC"

9шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

38

25-104

NUT,1/4"-20, G5

9шт.

39

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

Bolt-hex. "3/8" x 1/2" NC"

2шт.

40

92-6

LOCK WASHER,3/8"

2шт.
