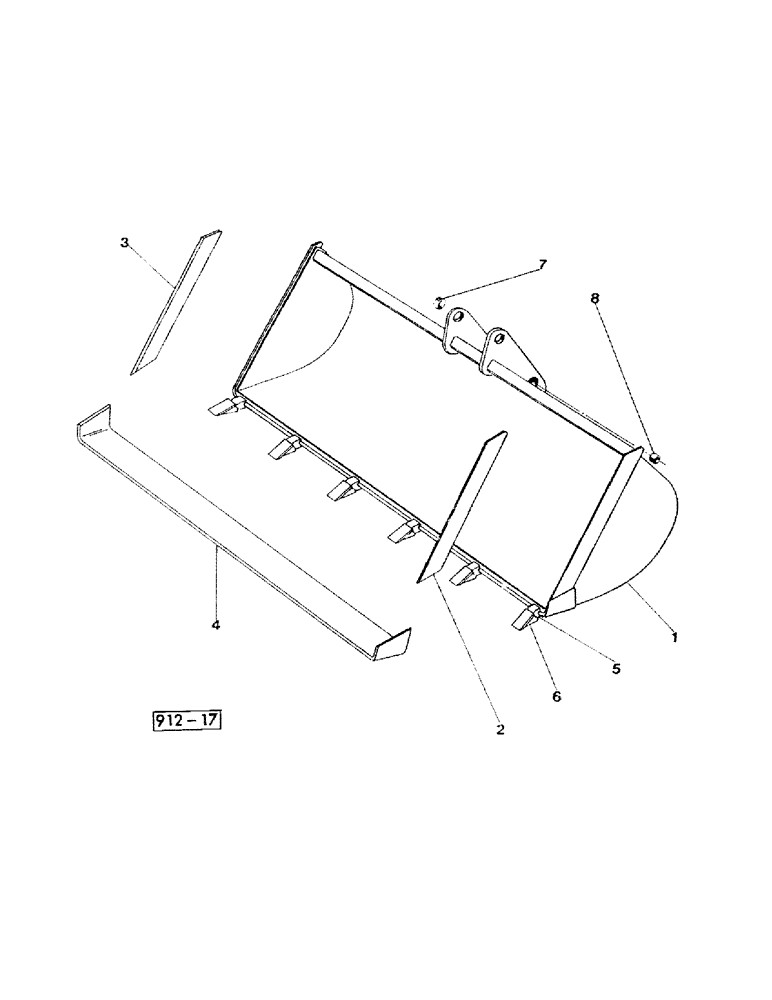

Запчасти Case 35 (126) - BUCKET - DITCH CLEANING
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
Bucket-ditch cleaning ass'y, ., Commander E15075/Order (39.25")
1шт.
2
D43306
EDGE, CUTTING
Blade-cutting RH
1шт.
3
D43305
BLADE
-cutting LH
1шт.
4
E15062
Blade-cutting, lower
1шт.
5
D26368
SUPPORT
Shank-tooth
6шт.
6
D58577
TOOTH
Point-tooth
6шт.
7
D40243
BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L
2шт.
8
D30929
BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L
2шт.
1
REF
INSTRUCTION
Bucket-ditch cleaning ass'y, ., Commander E15080/Order (43.31")
1шт.
2
D43306
EDGE, CUTTING
Blade-cutting RH
1шт.
3
D43305
BLADE
-cutting LH
1шт.
4
D43310
Blade-cutting, lower
1шт.
5
D26368
SUPPORT
Shank-tooth
6шт.
6
D58577
TOOTH
Point-tooth
6шт.
7
D40243
BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L
2шт.
8
D30929
BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L
2шт.
1
REF
INSTRUCTION
Bucket-ditch cleaning ass'y, ., Commander E15070/Order E15070 (47.25")
1шт.
2
D43306
EDGE, CUTTING
Blade cutting RH
1шт.
3
D43305
BLADE
cutting LH
1шт.
4
E15067
BLADE
-cutting, lower
1шт.
5
D26368
SUPPORT
Shank-tooth
7шт.
6
D58577
TOOTH
Point-tooth
7шт.
7
D40243
BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L
2шт.
8
D30929
BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L
2шт.
Выбрано товаров: 24
