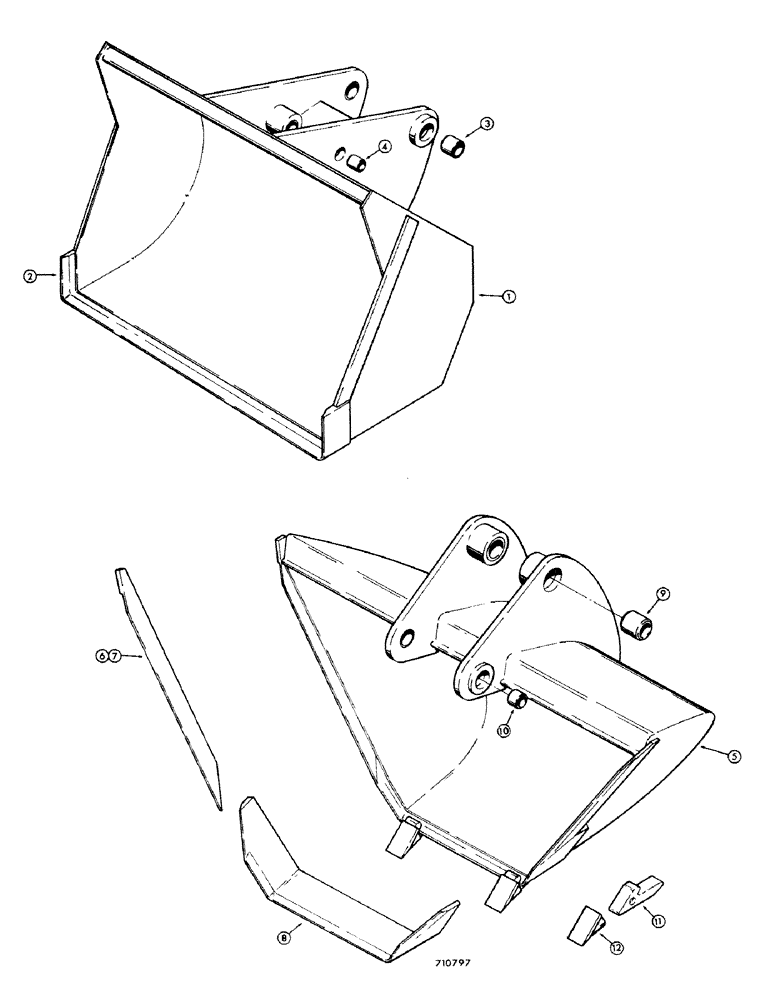

Запчасти Case 35 (124) - SHOVEL BUCKET

1

REF

INSTRUCTION

Bucket, shovel (42"), ., Commander D50682/Order

1шт.

2

E17912

Blade-cutting, lower

1шт.

3

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

2шт.

4

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

5

REF

INSTRUCTION

Bucket-digging ass'y, ., Commander E15133/Order, ditch (51.25")

1шт.

6

D43331

EDGE, CUTTING

Blade-cutting LH, bucket ditch digging (51.25")

1шт.

7

D43332

EDGE, CUTTING

Blade-cutting RH, bucket ditch digging (51.25")

1шт.

8

D43341

EDGE, CUTTING

Blade-cutting, lower, bucket ditch digging (51.25")

1шт.

9

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

bucket ditch digging (51.25")

2шт.

10

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket ditch digging (51.25")

2шт.

11

D26368

SUPPORT

Shank-tooth, bucket ditch digging (51.25")

2шт.

12

D58577

TOOTH

Point-tooth, bucket ditch digging (51.25")

2шт.
