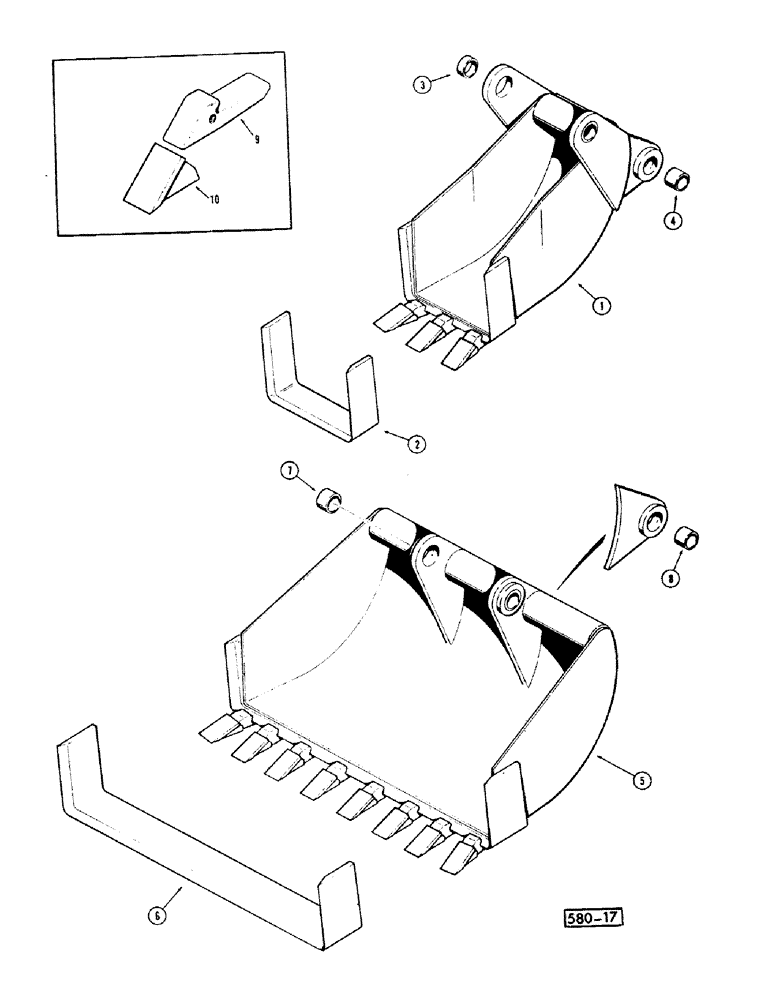

Запчасти Case 35 (122) - BELLHOLE BUCKETS

1

REF

INSTRUCTION

Bucket-backhoe ass'y (12"), ., Commander D41547/Order

1шт.

2

D37490

KNIFE

Blade-cutting

1шт.

3

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

2шт.

1

REF

INSTRUCTION

Bucket-backhoe ass'y (16"), ., Commander D41548/Order

1шт.

2

D37518

EDGE, CUTTING

Blade-cutting

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

2шт.

1

REF

INSTRUCTION

Bucket-backhoe ass'y (30"), ., Commander D41549/Order

1шт.

2

D37515

EDGE

Blade-cutting

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

2шт.

5

REF

INSTRUCTION

backhoe ass'y (36"), ., Commander D41550/Order, combination bellhole & graveyard buckets

1шт.

6

NLS

NO LONGER SERVICED

Blade-cutting, combination bellhole & graveyard buckets

1шт.

7

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

combination bellhole & graveyard buckets

2шт.

8

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

combination bellhole & graveyard buckets

2шт.
