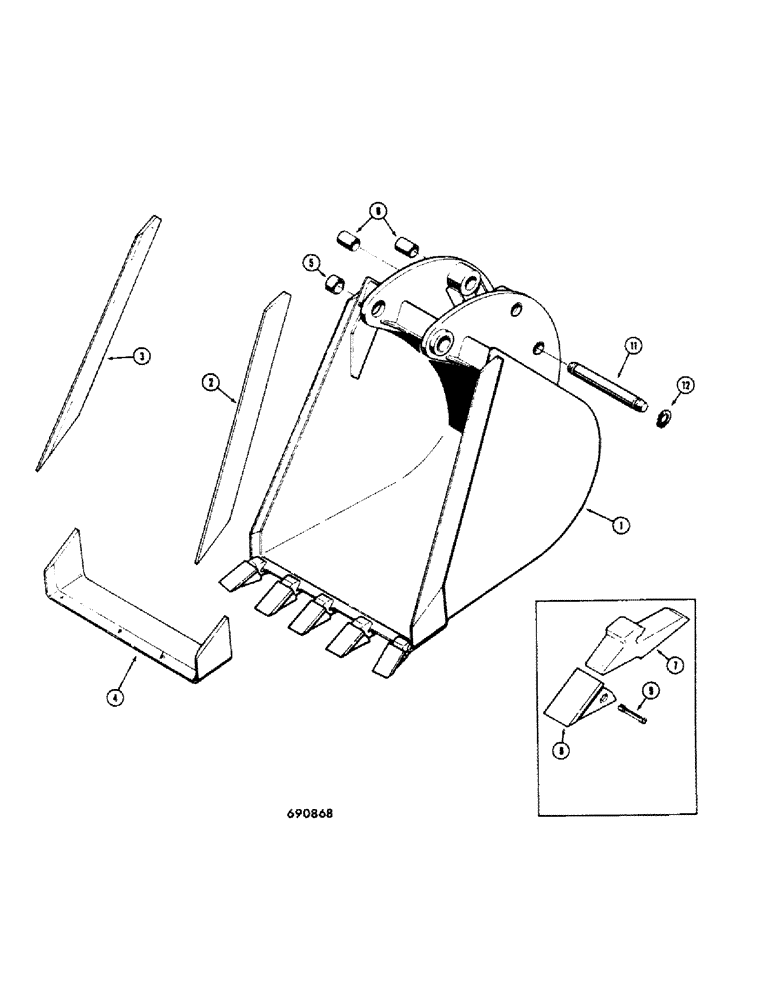

Запчасти Case 35 (118) - TRENCHING BUCKETS (HEAVY DUTY)

1

REF

INSTRUCTION

Bucket ass'y - heavy-duty (36"), ., Cder/Order/Bestellen Sie/D57545

1шт.

2

D57550

EDGE, CUTTING

Blade-cutting, RH

1шт.

3

D57551

EDGE, CUTTING

Blade-cutting, LH

1шт.

4

D57595

EDGE, CUTTING

Blade-cutting, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

4шт.

7

NUS-NSS

Shank-tooth NEG, (trenching buckets heavy duty) teeth

1шт.

8

D58591

Point-tooth, (trenching buckets heavy duty) teeth

1шт.

9

D39094

BUCKET TOOTH KEY

Flex pin-point, (trenching buckets heavy duty) teeth

1шт.

D41679

KIT

-pin ass'y

1шт.

11

D30899

PIVOT PIN,38.1mm OD x 338.14mm L

Pin, D41679 kit

1шт.

12

D25279

SNAP RING,M35, Int

Ring-snap, D41679 pin kit

2шт.
