(114) - (TRENCHING BUCKETS (HEAVY DUTY)

Запчасти Case 35 (114) - (TRENCHING BUCKETS (HEAVY DUTY)

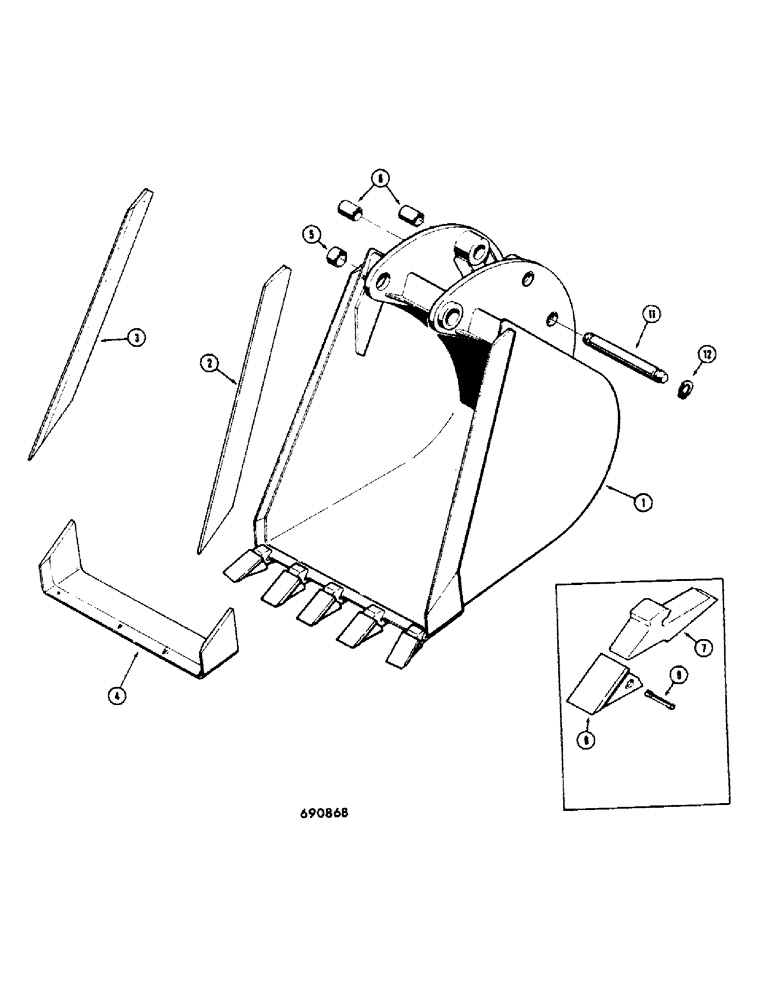

Схема запчастей Case 35 - (114) - (TRENCHING BUCKETS (HEAVY DUTY)
4
8
6
2
7
12
5
11
3
1
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Bucket-backhoe ass'y (24"), ., "Cder/Order/Bestellen Sie/D45135 A epuisement Cder/When depleted Order/Wenn aufgebraucht, Bestellen

1шт.

2

D45137

EDGE

Blade-cutting RH

1шт.

3

D45136

EDGE

Blade-cutting LH

1шт.

4

D45142

EDGE

Blade-cutting, lower

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

6

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

4шт.

1

REF

INSTRUCTION

Bucket-backhoe ass'y (30"), ., "Cder/Order/Bestellen Sie/D45263 A epuisement Cder/When depleted Order/Wenn aufgebraucht, Bestellen

1шт.

2

D45137

EDGE

Blade-cutting RH

1шт.

3

D45136

EDGE

Blade-cutting LH

1шт.

4

D45258

EDGE

Blade-cutting, lower

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

6

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

4шт.

1

REF

INSTRUCTION

Bucket-backhoe ass'y (36"), ., "Cder/Order/Bestellen Sie/D49240 A epuisement Cder/When depleted Order/Wenn aufgebraucht, Bestellen

1шт.

2

D45137

EDGE

Blade-cutting, RH

1шт.

3

D45136

EDGE

Blade-cutting, LH

1шт.

4

D49238

EDGE

Blade-cutting, lower

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

6

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

4шт.
