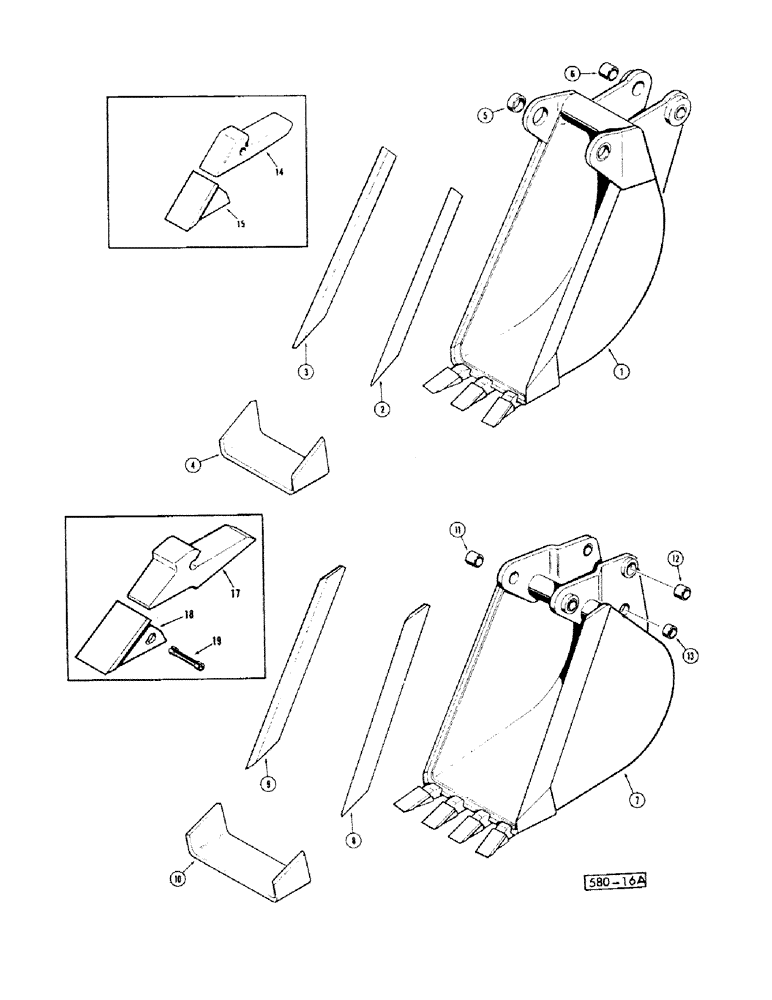

Запчасти Case 35 (112) - TRENCHING BUCKETS

7

REF

INSTRUCTION

Bucket ass'y-backhoe (24") ., Cder/Order/Bestellen Sie/D37474

1шт.

8

D21606

EDGE, CUTTING

Blade-cutting, RH

1шт.

9

D21605

EDGE, CUTTING

Blade-cutting, LH

1шт.

10

D37507

EDGE

Blade-cutting, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

2шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

2шт.

7

REF

INSTRUCTION

Bucket ass'y-backhoe (30") ., Cder/Order/Bestellen Sie/D37475

1шт.

8

D21606

EDGE, CUTTING

Blade-cutting, RH

1шт.

9

D21605

EDGE, CUTTING

Blade-cutting, LH

1шт.

10

D37505

EDGE, CUTTING

Blade-cutting, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

2шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

2шт.

7

REF

INSTRUCTION

Bucket ass'y-backhoe (36") ., Cder/Order/Bestellen Sie/D37476

1шт.

8

D21606

EDGE, CUTTING

Blade-cutting, RH

1шт.

9

D21605

EDGE, CUTTING

Blade-cutting, LH

1шт.

10

D37471

EDGE, CUTTING

Blade-cutting, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

2шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

2шт.
