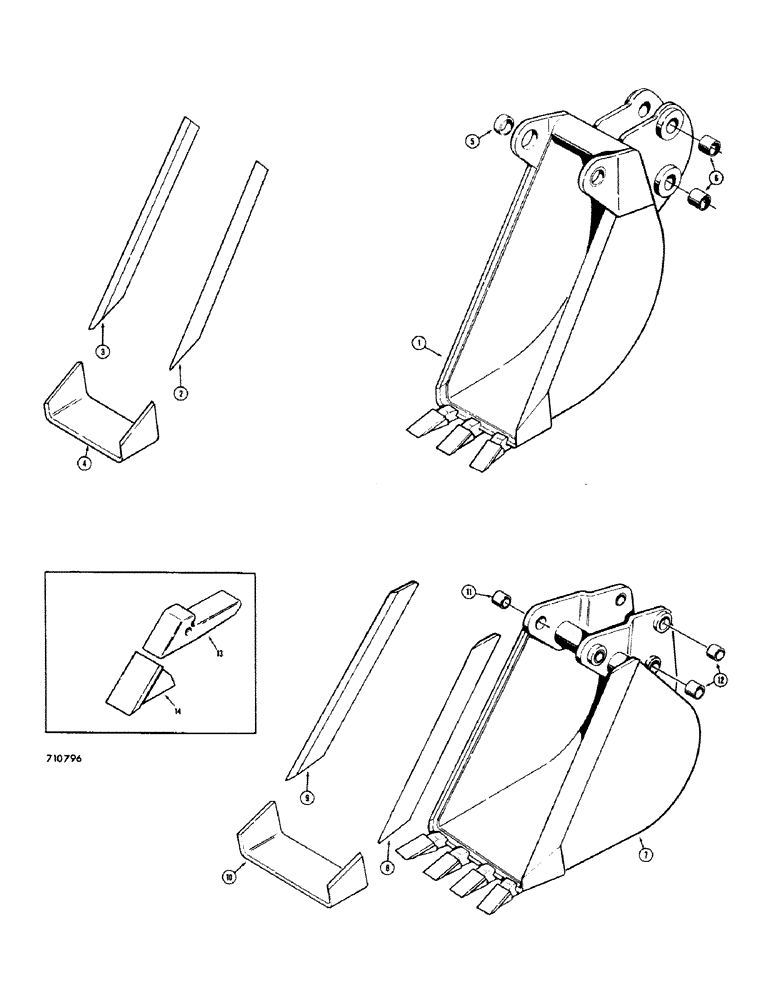

Запчасти Case 35 (110) - TRENCHING BUCKETS

1

REF

INSTRUCTION

Bucket - backhoe ass'y (12"), ., Commander D52642/Order

1шт.

2

D29424

EDGE, CUTTING

Blade-cutting RH

1шт.

3

D29423

EDGE, CUTTING

Blade-cutting LH

1шт.

4

D37464

EDGE, CUTTING

Blade-cutting lower

1шт.

5

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

4шт.

7

REF

INSTRUCTION

Bucket - backhoe ass'y (18"), ., Commander D37473/Order

1шт.

8

D21606

EDGE, CUTTING

Blade-cutting RH

1шт.

9

D21605

EDGE, CUTTING

Blade-cutting LH

1шт.

10

D37642

EDGE, CUTTING

Blade-cutting lower

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

4шт.
