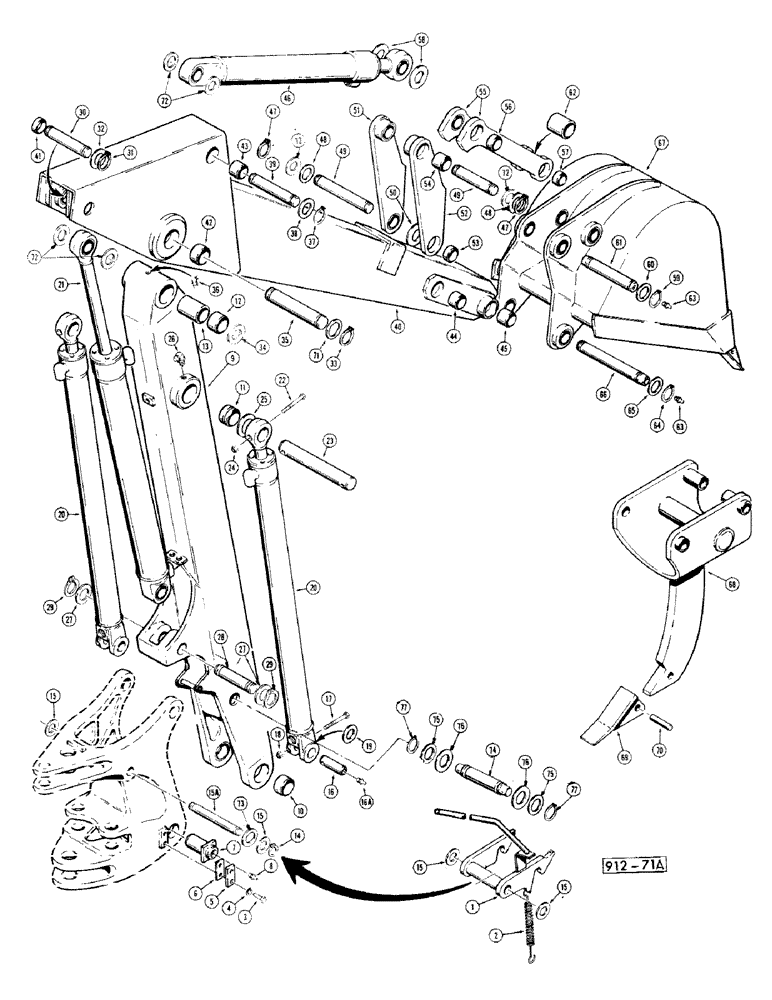

Запчасти Case 35 (102) - TOWER - BOOM - DIPPER ARM AND BUCKET

1

D58285

LEVER

Latch

1шт.

2

D54397

SPRING

1шт.

3

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

-hex. "1/2" x 3/4" NC"

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

D50149

BLOCK

2шт.

7

D50700

PIN

2шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting-grease "1/8"

2шт.

9

E19443

BOOM

ass'y D54944 (US)

1шт.

10

D50698

BUSHING,51.03mm ID x 69.98mm OD x 40.64mm L

2шт.

11

D95362

BUSHING

2шт.

12

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

2шт.

13

D37416

BUSHING

Spacer

1шт.

14

D56051

SNAP RING,#137. Ext

Ring, Snap, #137, Ext

2шт.

15

195-2140

WASHER,1 7/16" x 2" x .065"

-plain

6шт.

15a

D55996

SHAFT

1шт.

16

D49866

PIN,38.1mm OD x 96.52mm L

2шт.

16a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting grease "1/8"

2шт.

17

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

-hex. "3/8" x 3-1/2" NC"

2шт.

18

E19347

NUT

-hex.,lock "3/8"

2шт.

19

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

-plain

2шт.

20

REF

INSTRUCTION

Cylinder, ., Voir page 138/See page 138/Siehe

2шт.

21

REF

INSTRUCTION

Cylinder, ., Voir page 140/See page 140/Siehe

1шт.

22

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

23

D49865

PIN,50.8mm OD x 304.8mm L

1шт.

24

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

25

195-2155

WASHER,2 1/16" x 3" x .109"

-plain

2шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting grease "1/8"

2шт.

27

195-2155

WASHER,2 1/16" x 3" x .109"

-plain

2шт.

28

D54506

PIN

1шт.

29

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

30

D52522

PIN,44.45mm OD x 211.84mm L

1шт.

31

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

32

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

-plain

4шт.

33

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

34

195-2155

WASHER,2 1/16" x 3" x .109"

-plain

4шт.

35

D45523

PIN,50.8mm OD x 276.35mm L

1шт.

36

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

37

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

38

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

-plain

4шт.

39

D52522

PIN,44.45mm OD x 211.84mm L

1шт.

40

D56528

DIPPER

arm ass'y

1шт.

41

D52434

BUSHING

2шт.

42

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

2шт.

43

D40089

BUSHING

2шт.

44

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

2шт.

45

D55626

BUSHING,44.68mm ID x 57.15mm OD x 41.91mm L

2шт.

46

REF

INSTRUCTION

Cylinder, ., Voir page 180/See page 180/Siehe

1шт.

47

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

4шт.

48

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

-plain

4шт.

49

D53818

PIN,44.45mm OD x 278.89mm L

2шт.

50

D55732

WASHER

-plain

2шт.

51

D53839

LINK

-LH

1шт.

52

D53840

LINK

-RH

1шт.

53

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

1шт.

54

D42788

BUSHING,44.68mm ID x 53.98mm OD x 28.57mm L

1шт.

55

D50157

LINK

ass'y

2шт.

E31632

Link-LH, Pour Allemagne/For Germany/Fur

1шт.

E31633

Link-RH, Pour Allemagne/For Germany/Fur

1шт.

56

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1шт.

57

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1шт.

58

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

-plain

2шт.

59

D25279

SNAP RING,M35, Int

Ring-retaining

2шт.

59

D25280

SNAP RING,#175, Ext

Ring, Snap, , for buckets D52642, D41547, E15070, E15075 and E15080 #175, Ext

2шт.

60

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

2шт.

61

D30899

PIVOT PIN,38.1mm OD x 338.14mm L

Pin

1шт.

For buckets D57543, D57544, D57545, D45135, D45263, D49240, D50682, E15133, E15070, E15075 and E15080.

1шт.

61

D37614

PIN,38mm Od x 246mm L

1шт.

For buckets D37473, D41548, D41549, D41550, D57546, D37474, D37475 and D37476.

1шт.

61

D37793

PIN

for frost point only

1шт.

61

D55584

PIN,44.45mm OD x 327.15mm L

for buckets D52642, D41547, E15070, E15075 and E15080

1шт.

62

D37450

SPACER,40.89mm ID x 48.26mm OD x 63.5mm L

Spacer

1шт.

63

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting-grease "1/8"

2шт.

64

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

65

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

-plain

2шт.

66

D53577

PIN

Voir/See/Siehe D55584

1шт.

66

D55584

PIN,44.45mm OD x 327.15mm L

for buckets D52642, D41547, E15070, E15075 and E15080

1шт.

67

REF

INSTRUCTION

Bucket, ., Voir page 110/See page 110/Siehe

1шт.

D42577

SPARE PART

Frost point ass'y

1шт.

68

NUS-NSS

Body NEG

1шт.

69

D43416

POINT

-tooth

1шт.

70

D43417

PIN

Flex. pin

1шт.

74

D55082

LOCK PIN,38.1mm OD x 208.53mm L

Pin

1шт.

77

D25279

SNAP RING,M35, Int

Ring-retaining

2шт.
