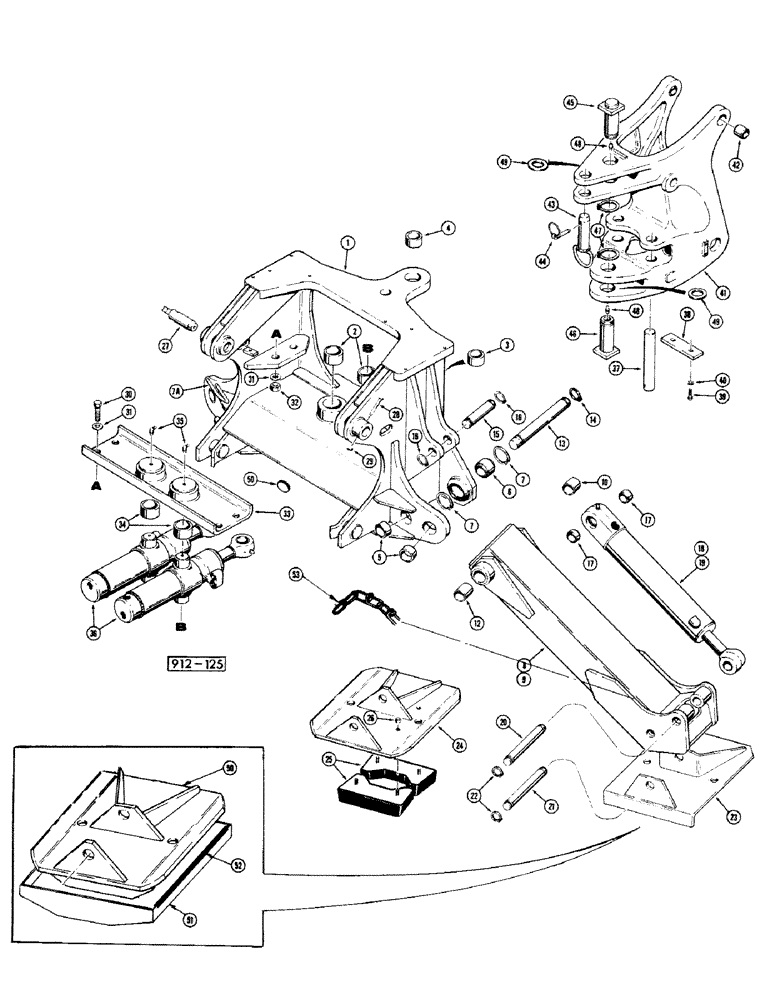

Запчасти Case 35 (098) - MOUNTING FRAME AND STABILIZER-35 BACKHOE

1

E32329

Frame ass'y

1шт.

2

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

2шт.

3

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

1шт.

4

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

1шт.

5

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

4шт.

6

D46942

BEARING,1.75" ID x 2.8125" OD x 1.526"

Bushing

2шт.

7

F35231

LOCKING RING

Ring-retaining

4шт.

7a

D61298

GUIDE

-hose

1шт.

8

D50294

STABILIZER

Leg-stabilizer-RH ass'y

1шт.

E32204

Leg-stabilizer-RH ass'y, Pour Allemagne/For Germany/Fur

1шт.

9

D50295

STABILIZER

Leg-stabilizer-LH ass'y

1шт.

E32205

Leg-stabilizer-LH ass'y, Pour Allemagne/For Germany/Fur

1шт.

10

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1шт.

12

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

1шт.

13

D60168

PIN

2шт.

14

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

4шт.

15

D29483

PIN,38.1mm OD x 146.05mm L

2шт.

16

D25279

SNAP RING,M35, Int

Ring-retaining

4шт.

17

D50337

BUSHING,38.91mm ID x 44.45mm OD x 14.22mm L

Spacer

4шт.

18

REF

INSTRUCTION

Cylinder-stabilizer-LH, ., Voir Figure 144/See Figure 144/Siehe

1шт.

19

REF

INSTRUCTION

Cylinder-stabilizer-RH, ., Voir Figure 144/See Figure 144/Siehe

1шт.

20

D50695

PIN,38.1mm OD x 195.33mm L

2шт.

21

D50696

PIN,38.1mm OD x 225.55mm L

2шт.

22

D25279

SNAP RING,M35, Int

Ring-retaining

8шт.

23

D55473

PAD

Foot

2шт.

D50141

FOOT

Pour Allemagne/For Germany/Fur

2шт.

24

D55478

FOOT

for street

2шт.

25

D40469

SHOE (ASSY)

Pad-rubber

4шт.

26

D29712

SPECIAL NUT

-hex. "7/16" NF"

8шт.

27

D56335

PIN

2шт.

28

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

29

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

30

13-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

4шт.

31

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

-special

8шт.

32

25-1016

NUT,1"-8, G5

4шт.

33

D60169

CHANNEL

Plate-retainer

1шт.

34

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

2шт.

35

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

36

REF

INSTRUCTION

Cylinder-swing, ., Voir Figure 142/See Figure 142/Siehe

2шт.

37

D49863

PIN,44.45mm OD x 248.92mm L

2шт.

38

D49864

PLATE

-pin retaining

1шт.

39

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

40

92-8

LOCK WASHER,1/2"

2шт.

41

D50134

LATHE

Tower ass'y-swing

1шт.

D50132

SPACER,57.15mm ID x 114.3mm OD x 7.94mm L

Washer

1шт.

42

D49429

BUSHING

2шт.

43

D49879

PIN

1шт.

44

21901

PIN

-klik

1шт.

45

D52105

LARGE PIN

Pin

1шт.

46

D50170

PIN

1шт.

47

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

48

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting-grease-straight "1/8"

2шт.

50

41-1032

PLUG,Cup, 2"

1шт.

51

E31526

Casing-protective, Pour Allemagne/For Germany/Fur

2шт.

52

E31537

Trim-rubber, Pour Allemagne/For Germany/Fur

4шт.

53

F67318

CHAIN (AG)

Chain, Pour Allemagne/For Germany/Fur

1шт.
