(094) - SWIVEL JOINT, SWIVEL JOINT - D60947

Запчасти Case 35 (094) - SWIVEL JOINT, SWIVEL JOINT - D60947

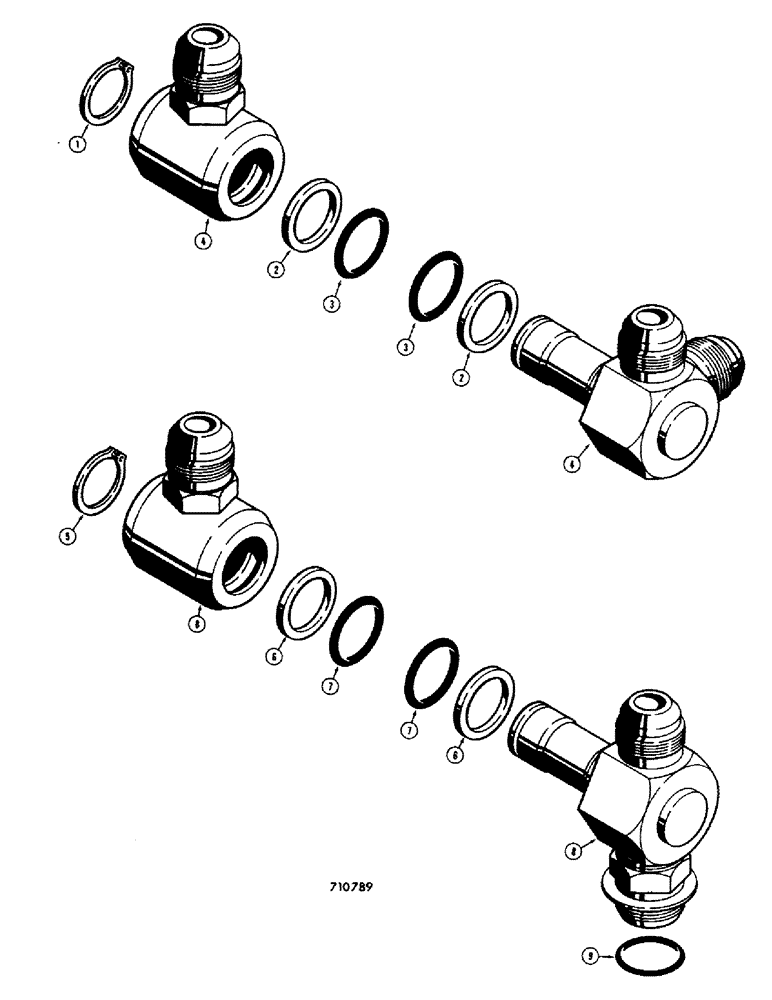

Схема запчастей Case 35 - (094) - SWIVEL JOINT, SWIVEL JOINT - D60947
9
6
5
2
6
7
3
1
8
2
4
3
7
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D60947

FITTING

Joint ass'y

1шт.

1

S70827

SNAP RING,#102, Ext

Ring, Snap, #102, Ext

1шт.

2

D61902

RING

-backup, seal

2шт.

3

16202

O-RING,40544" ID x 13" OD x 1"

"O" Ring

2шт.

4

NUS-NSS

Body NEG

1шт.

D60948

JOINT

ass'y, D60948 swivel joint

1шт.

5

S70827

SNAP RING,#102, Ext

Ring, Snap, , D60948 swivel joint #102, Ext

1шт.

6

D61902

RING

-back-up, seal, D60948 swivel joint

2шт.

7

16202

O-RING,40544" ID x 13" OD x 1"

"O" Ring, D60948 swivel joint

2шт.

8

NUS-NSS

Body NEG, D60948 swivel joint

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring, D60948 swivel joint

1шт.
