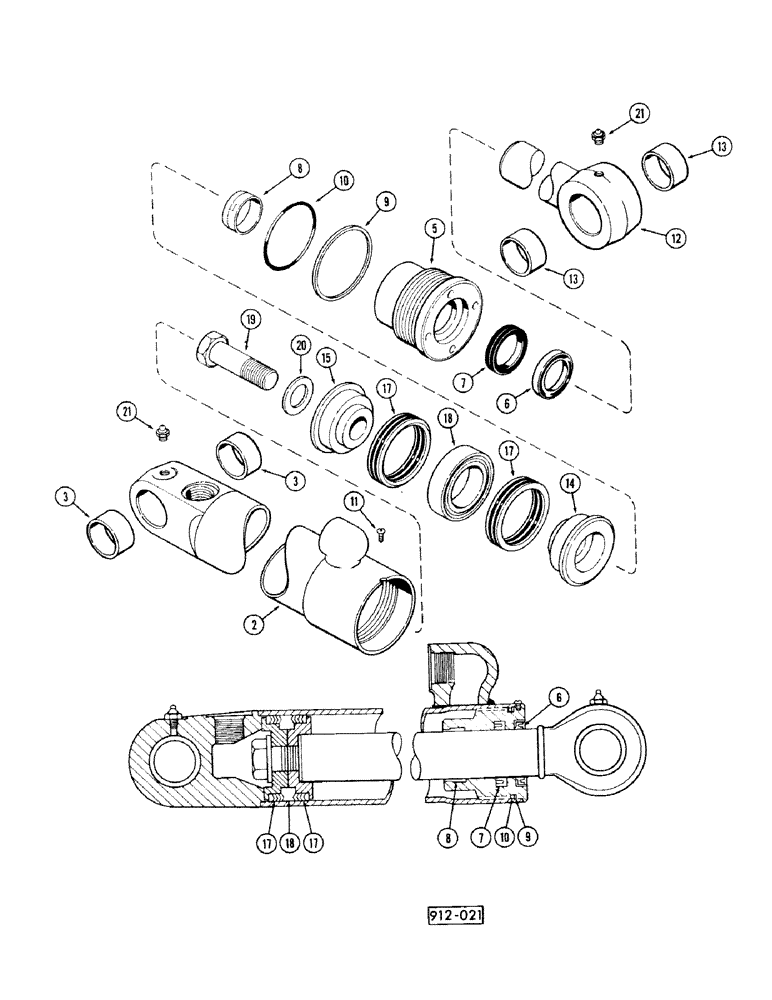

Запчасти Case 35 (092) - LOGGING FORK GRAPPLE CYLINDER

G32151

Cylinder ass'y - Grapple

1шт.

2

D46135

Tube ass'y

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

G32733

GLAND

-packing ass'y

1шт.

5

NUS

Gland-packing NSS NEG

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

-rod

1шт.

Part of seal kit G32294

1шт.

7

D36969

CUP

Seal-rod

1шт.

Part of seal kit G32294

1шт.

8

D27706

WIPER SEAL

Wiper

1шт.

Part of seal kit G32294

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

-backup

1шт.

Part of seal kit G32294

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" Ring

1шт.

Part of seal kit G32294

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

Screw-self tapping

1шт.

12

D46137

ROD ASSY.

Rod ass'y

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

14

D28363

PISTON

-split (Rod end)

1шт.

15

D28364

PISTON

-split (Bolt end)

1шт.

G33193

PACKING

ass'y

1шт.

Part of seal kit G32294

1шт.

17

G33194

PACKING

Vee packing

2шт.

18

G33195

RING

center

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

-hex. "3/4" x 2-1/2" NF"

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting-grease "1/8"

2шт.

G32294

SEAL

kit, Includes: Ref. 6 - 10 and P/N G33193

1шт.
