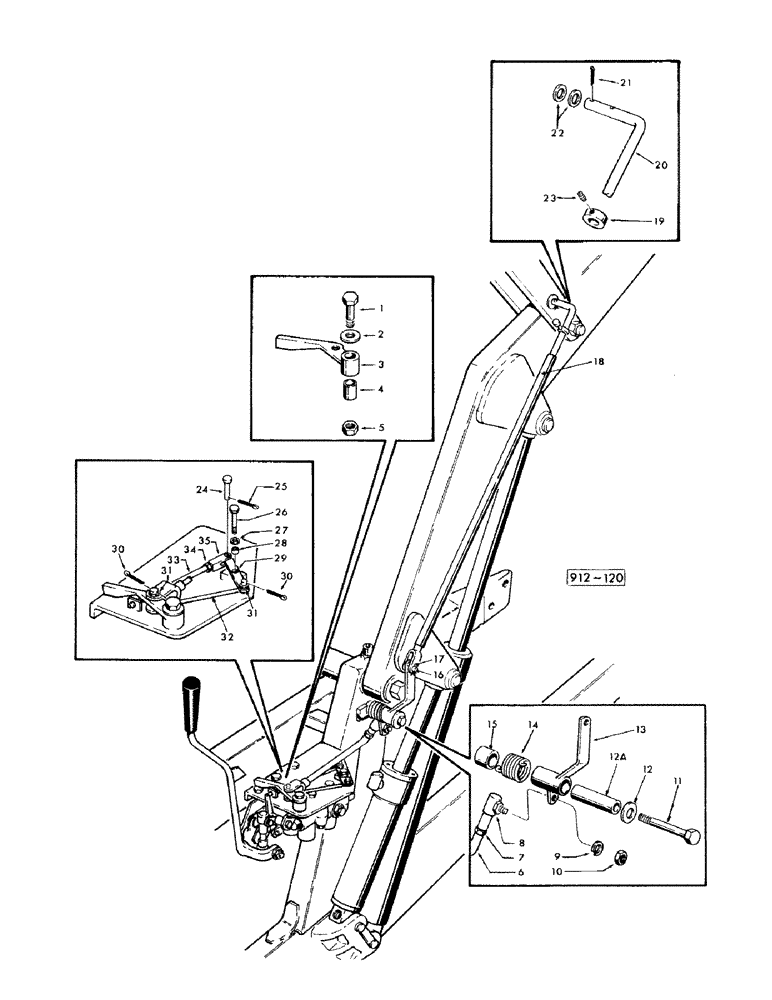

Запчасти Case 35 (008) - ANTI ROLL BACK - RETURN TO DIG

1

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

-hex. "3/8" x 2-1/2" NC"

1шт.

2

95-6

WASHER,3/8"

1шт.

3

D37577

LATCH ASSY.

Latch

1шт.

4

D37559

SLEEVE

Spacer

1шт.

5

E19347

NUT

Lock nut "3/8" NC"

1шт.

6

D43968

DRAG LINK

Rod-connecting

1шт.

7

25-116

NUT,Hex, 3/8"-24, G5

"3/8" NF"

1шт.

8

D38296

JOINT

-swivel

1шт.

9

92-6

LOCK WASHER,3/8"

1шт.

10

25-116

NUT,Hex, 3/8"-24, G5

"3/8" NF"

1шт.

11

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

12

195-33

WASHER,1/2"

-plain "17/32"

1шт.

12a

D37564

SLEEVE CYLINDER

Sleeve

1шт.

13

D44015

LEVER

1шт.

14

D37560

VALVE SPRING

Spring

1шт.

15

D37569

SPACER,1 1/2" Tube x 5/8"

1шт.

16

141-104

PIN,3/8" x 1.060"

1шт.

17

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

18

D37567

GUIDE

-rod

1шт.

19

D37570

COLLAR

-rod

1шт.

20

D37568

ROD

1шт.

21

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

22

195-33

WASHER,1/2"

-plain "13/32"

2шт.

23

85-46

SET SCREW,Sq Hd, 1/4"-20 x 3/8"

SHSS 1/4" x 3/8" NC "1/4" x 3/8" NC"

1шт.

24

141-104

PIN,3/8" x 1.060"

1шт.

25

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

27

95-6

WASHER,3/8"

1шт.

28

D43962

BUSHING

-spacer

1шт.

29

D43961

DRAG LINK

Link

1шт.

30

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

31

92-6

LOCK WASHER,3/8"

2шт.

32

D43960

LINK

-rod

1шт.

33

D43965

PUSH ROD

Push-rod

1шт.

34

25-116

NUT,Hex, 3/8"-24, G5

"3/8" NF"

1шт.

35

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

Yoke

1шт.
