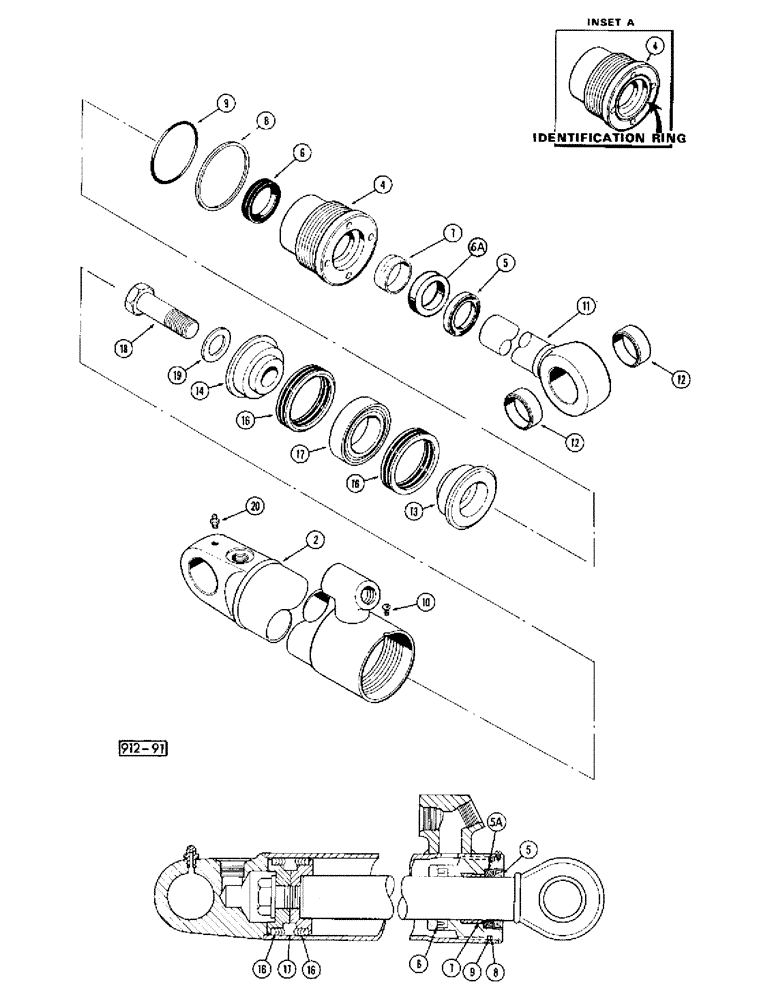

Запчасти Case 35 (090) - HYDRA-LEVELING CYLINDER

G33558

CYLINDER

-hyd.hydra-leveling ass'y

1шт.

2

D48612

BODY

Tube cylinder

1шт.

G34633

GLAND

ass'y

1шт.

4

NUS-NSS

Gland NEG

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

-rod

1шт.

Part of seal kit G34642

1шт.

6

D36970

CUP

Seal-rod

1шт.

Part of seal kit G34642

1шт.

6a

NUS-NSS-NEG

Bearing

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

Bearing

1шт.

Part of seal kit G34642

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

back-up

1шт.

Part of seal kit G34642

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" Ring

1шт.

Part of seal kit G34642

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

Screw

1шт.

11

G33559

ROD

ass'y

1шт.

12

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

1шт.

13

G33331

PISTON

-split (Rod end)

1шт.

14

D28896

PISTON

-split (Bolt end)

1шт.

G33151

PACKING

ass'y

1шт.

Part of seal kit G34642

1шт.

16

NUS-NSS

Vee packing NEG

2шт.

17

NUS-NSS

Ring center NEG

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G34642

SEAL

kit, Includes: Ref. 5, 6, 7 - 9 and P/N G33151

1шт.
