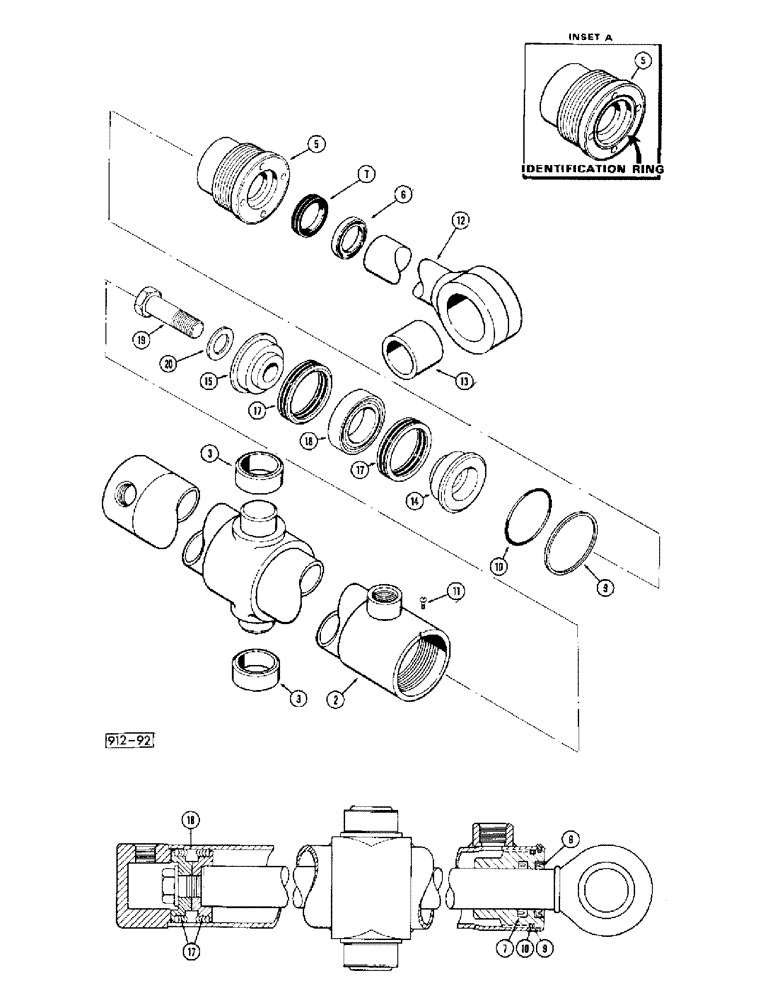

Запчасти Case 35 (088) - LOADER DUMP CYLINDER

G33420

HYDRAULIC CYLINDER

Cylinder ass'y - Dump R.H

1шт.

G33421

HYDRAULIC CYLINDER

Cylinder ass'y - Dump L.H

1шт.

2

D31098

TUBE

cylinder R.H ass'y

1шт.

D31099

TUBE

cylinder L.H ass'y

1шт.

3

D31511

BUSHING

2шт.

G33487

GLAND

ass'y

1шт.

5

NUS-NSS

Gland NEG

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

-rod

1шт.

Part of seal kit G32294

1шт.

7

D36969

CUP

Seal-rod

1шт.

Part of seal kit G32294

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

back-up

1шт.

Part of seal kit G32294

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" Ring

1шт.

Part of seal kit G32294

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

Screw

1шт.

12

G33422

ROD

ass'y

1шт.

13

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

1шт.

14

G33419

PISTON

-split (Rod end)

1шт.

15

D28364

PISTON

-split (Bolt end)

1шт.

G33193

PACKING

ass'y

1шт.

Part of seal kit G32294

1шт.

17

NUS-NSS

Vee packing NEG

2шт.

18

NUS-NSS

Ring-center NEG

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

-hex. "3/4"x2-1/2" NF"

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

G32294

SEAL

kit, Includes: Ref. 6 - 10 and P/N G33193

1шт.
