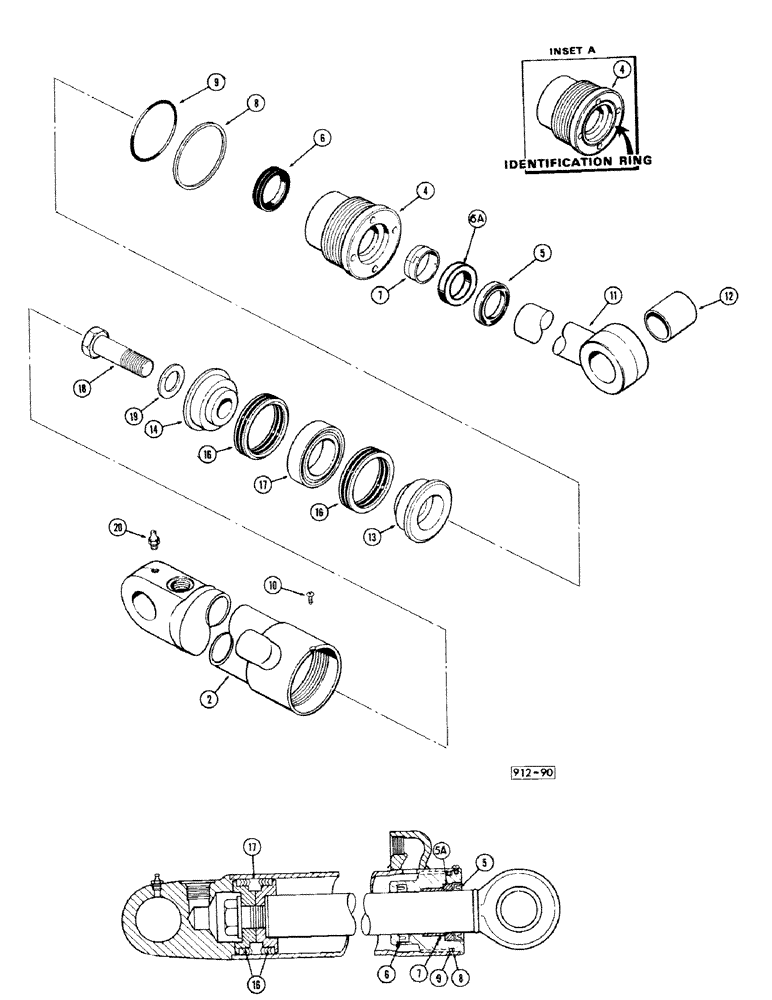

Запчасти Case 35 (086) - LOADER LIFT CYLINDERS

G33443

CYLINDER

-Hyd.loader lift RH ass'y

1шт.

G33444

CYLINDER

-Hyd.loader lift LH ass'y

1шт.

2

D48616

TUBE

cyl.RH

1шт.

D48617

BODY

Tube cyl.LH

1шт.

G34328

GLAND

ass'y

1шт.

4

NUS-NSS

Gland NEG

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

rod

1шт.

Part of seal kit G34332

1шт.

6

D36969

CUP

Seal rod

1шт.

Part of seal kit G34332

1шт.

6a

NUS-NSS-NEG

Bearing

1шт.

7

G34302

BEARING

1шт.

Part of seal kit G34332

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

back-up

1шт.

Part of seal kit G34332

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" Ring

1шт.

Part of seal kit G34332

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

Screw

1шт.

11

G33445

ROD

ass'y

1шт.

12

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

1шт.

13

G33150

PISTON

-split (Rod end)

1шт.

14

D28366

PISTON

-split (Bolt end)

1шт.

G33151

PACKING

ass'y

1шт.

Part of seal kit G34332

1шт.

16

NUS-NSS

Vee packing NEG

2шт.

17

NUS-NSS

Ring center NEG

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

-hex. "3/4" x 2-1/2" NF"

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting grease "1/8"

1шт.

G34332

SEAL

kit, Includes: Ref. 5, 6, 7 - 9 and P/N G33151

1шт.
