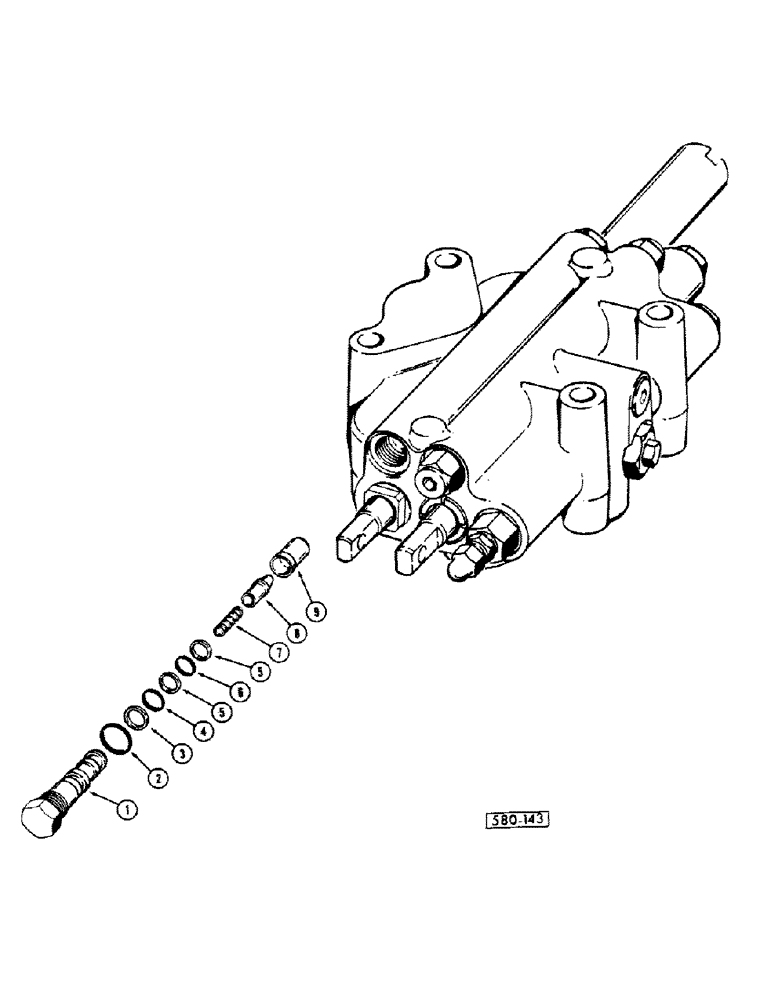

Запчасти Case 35 (084) - CHECK VALVE

1

D37066

CAP

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (large)

1шт.

3

D37071

RING

-backup, D26265 "O" ring

1шт.

4

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

"O" Ring (center)

1шт.

5

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

-backup, small "O" ring

2шт.

6

D37149

O-RING,104 mm ID

"O" Ring (small)

1шт.

7

D37067

SPRING

1шт.

8

D37068

VALVE POPPET

Poppet

1шт.

9

D37069

SLEEVE

Seat-poppet

1шт.
