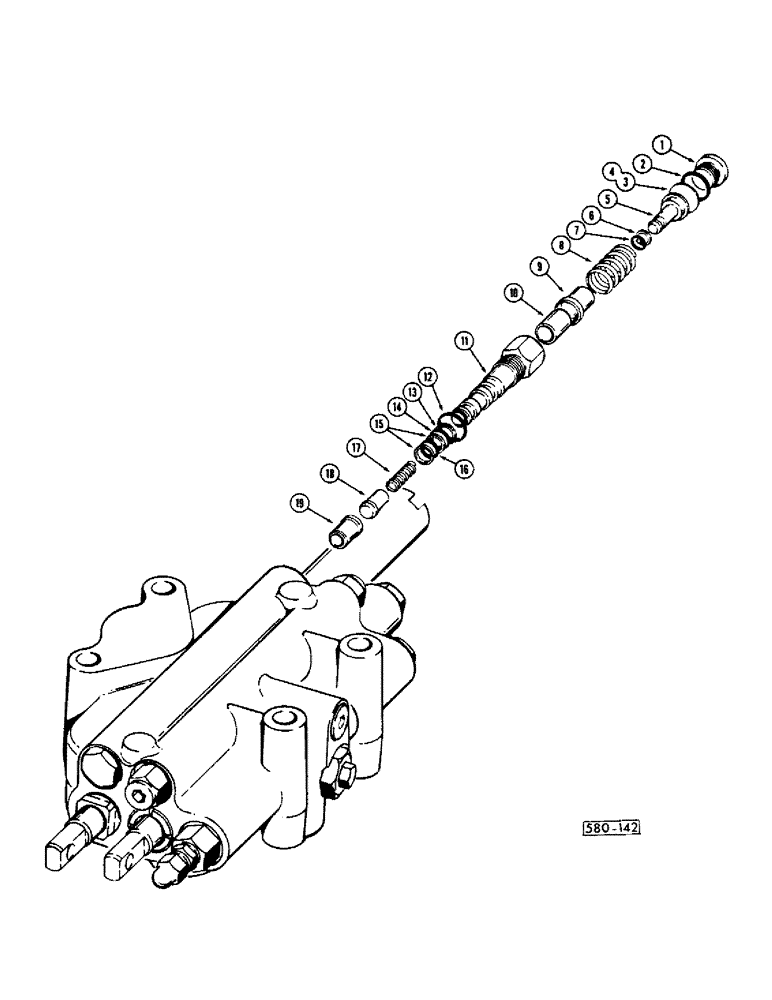

Запчасти Case 35 (082) - SECONDARY RELIEF VALVE

1

D40354

PLUG

ass'y

1шт.

5

D37073

GUIDE

-spring

1шт.

6

D40357

RING

-backup

1шт.

7

D40356

O-RING

"O" Ring

1шт.

8

D37148

SPRING

1шт.

9

D37074

PLUNGER

1шт.

10

D37075

SEAT

-plunger

1шт.

11

D37072

CAP

Body

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk (large)

1шт.

13

D37071

RING

-backup, D26265 "O" ring

1шт.

14

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

"O" Ring (center)

1шт.

15

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

-backup, small "O" ring

2шт.

16

D37149

O-RING,104 mm ID

"O" Ring (small)

1шт.

17

D37067

SPRING

1шт.

18

D37068

VALVE POPPET

Poppet

1шт.

19

D37069

SLEEVE

Seat-poppet

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
