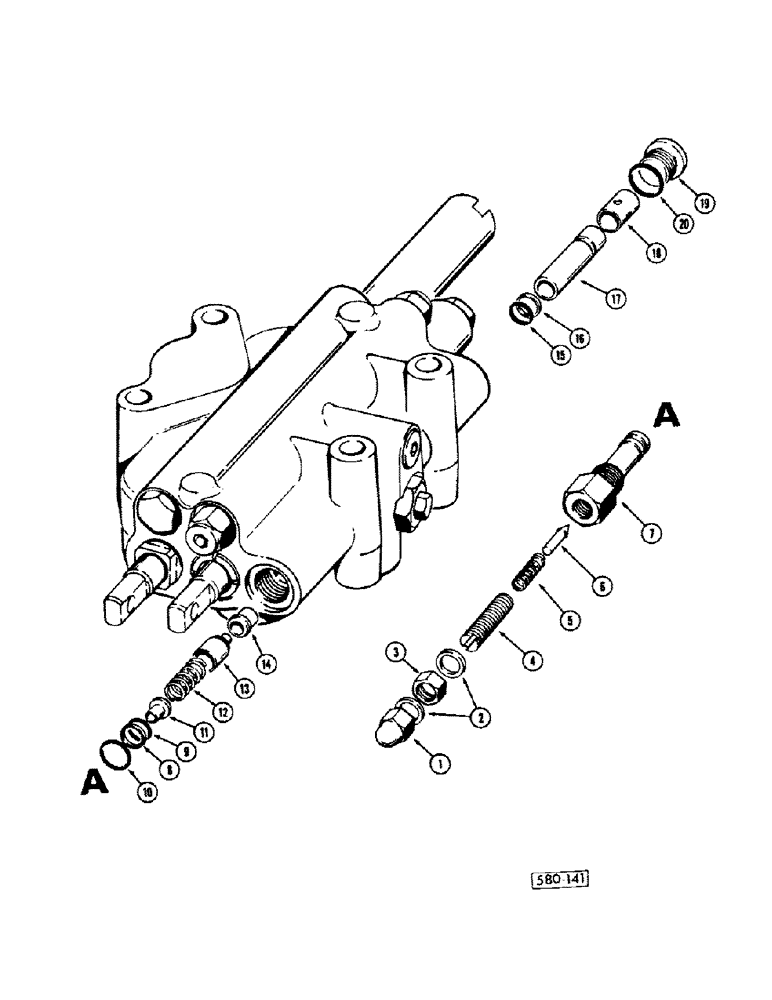

Запчасти Case 35 (080) - MAIN RELIEF VALVE

1

129-514

CROWN NUT,Low, 5/16" - 24

-acorn

1шт.

2

D26270

WASHER, SEALING

Washer

2шт.

3

25-155

JAM NUT,Jam, 5/16"-24, G5

-jam "5/16" NF"

1шт.

4

176-296

SET SCREW,5/16"-24 x 1 3/4", Slotted

Screw-adjusting

1шт.

5

D26268

SPRING

1шт.

6

D26267

PLUNGER

1шт.

7

A25291

CAP

1шт.

8

L30443

BACK-UP RING,0.547" ID x 0.049" Width

-backup

1шт.

9

L30444

O-RING,0.521" ID x 0.661" OD

"O" Ring (small)

1шт.

11

D26266

SEAT

-plunger

1шт.

12

D52319

SPRING

1шт.

13

D37062

VALVE

Poppet

1шт.

14

D37063

SEAT

1шт.

15

L30444

O-RING,0.521" ID x 0.661" OD

"O" Ring

1шт.

16

L30443

BACK-UP RING,0.547" ID x 0.049" Width

backup

1шт.

17

D37064

SLEEVE

-poppet seat

1шт.

18

D37065

SLEEVE

-drain

1шт.

19

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
