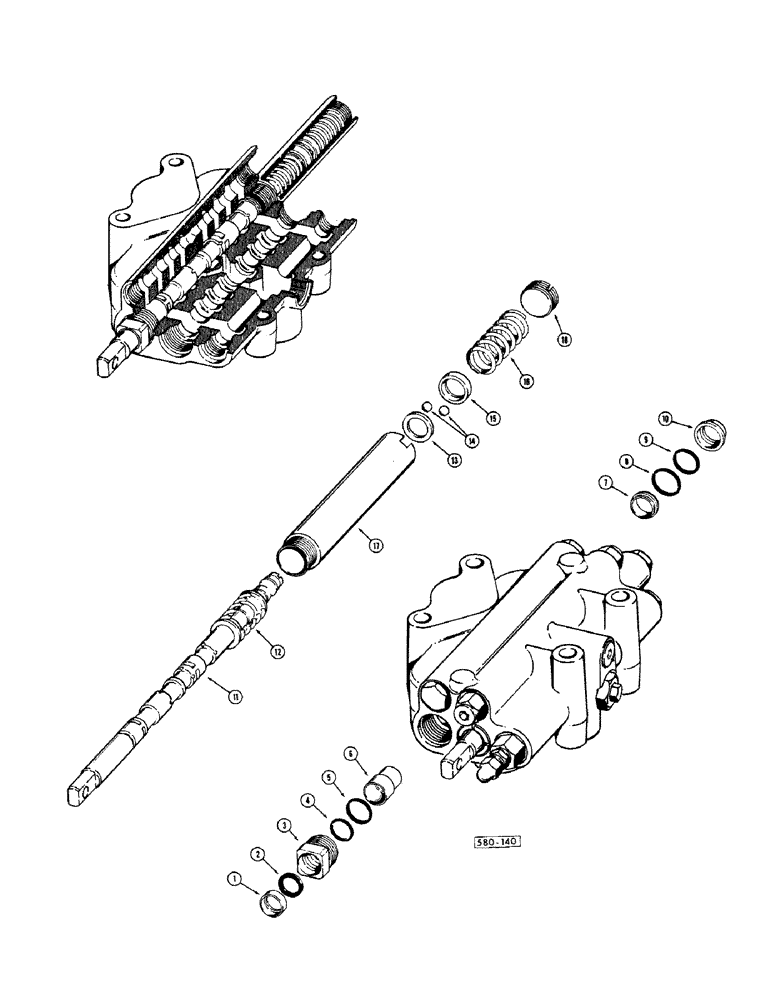

Запчасти Case 35 (076) - LOADER LIFT SPOOLS

D46024

SPOOL

ass'y (black or code letter W) .73 700" to .73 709"

1шт.

D46025

SPOOL

ass'y (blue or code letter X) .73 710 to .73 719"

1шт.

N6592

VALVE

Spool ass'y (yellow or code letter Y) .73 720" to .73 729"

1шт.

D46027

SPOOL

ass'y (green or code letter Z) .73 730" to .73 740"

1шт.

1

D37153

RETAINER

1шт.

2

A14527

SCRAPER

Wiper ring

1шт.

3

D37152

RETAINER

Gland-spool

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" Ring (small)

1шт.

5

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

"O" Ring (large)

1шт.

6

D37076

SLEEVE

1шт.

7

D33857

RETAINER

1шт.

8

A16877

SEAL

"O" Ring (large)

1шт.

9

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" Ring (small)

1шт.

10

D33856

RETAINER

1шт.

D46034

TUBE

Spool kit-D46024 spool only

1шт.

D46035

SPOOL

kit-D46025 spool only

1шт.

D46036

SHAFT

Spool kit D46026 spool only

1шт.

D46037

SPOOL

kit D46027 spool only

1шт.

11

NUS-NSS

Spool ass'y NEG

1шт.

12

A16882

SPRING

1шт.

13

L30455

WASHER

1шт.

14

211-8

BALL,9/32" Dia

8шт.

15

L30456

CAM

-detent

1шт.

16

L30626

SPRING

1шт.

17

L30454

CAP

1шт.

18

L30458

PLUG

1шт.
