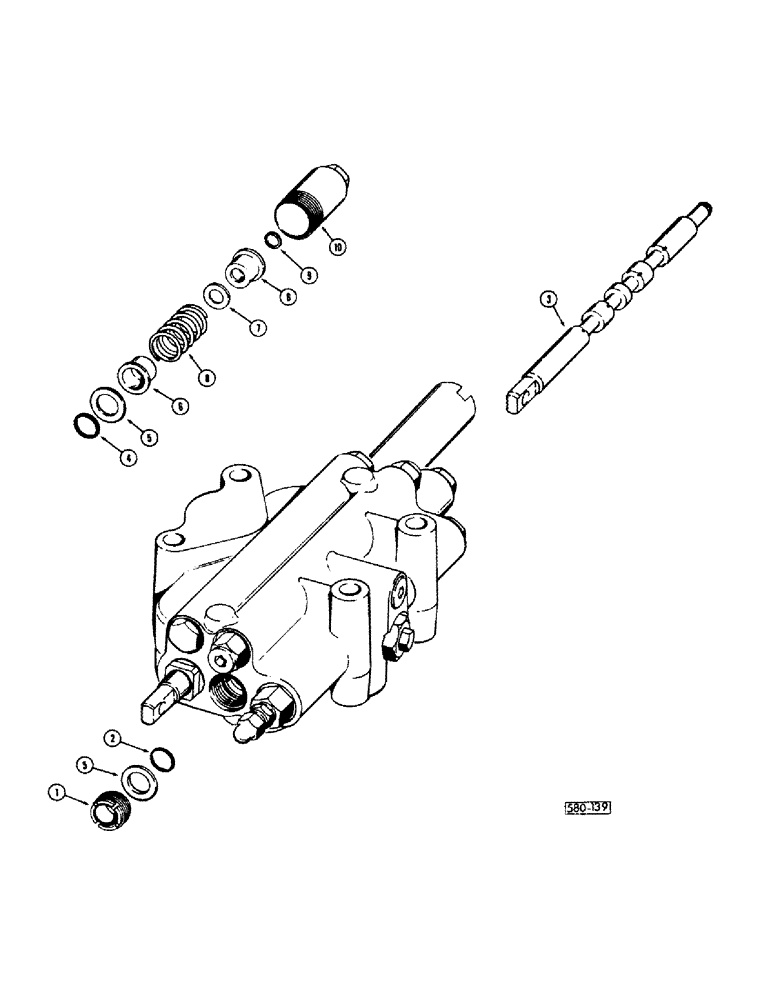

Запчасти Case 35 (074) - LOADER TILT AND CLAM SPOOLS

D37050

SPOOL

ass'y (black or letter code-W) .73 700" to .73 709"

1шт.

D37051

SPOOL

ass'y (blue or letter code-X) .73 710" to .73 719"

1шт.

D37052

SPOOL

ass'y (yellow or letter code-Y) .73 720" to .73 729"

1шт.

D37053

SPOOL

ass'y (green or letter code-Z) .73 730" to .73 740"

1шт.

1

L30744

GLAND

& wiper-spool

1шт.

2

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" Ring

1шт.

3

NUS-NSS

Spool NEG

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" Ring

1шт.

5

A14535

RETAINER

-seal

2шт.

6

A14533

BRONZE BUSHING

Retainer-spring

2шт.

7

A25286

WASHER

1шт.

8

A14534

SPRING

1шт.

9

A27020

RING

Snap ring

1шт.

10

A14529

CAP

-spool

1шт.
