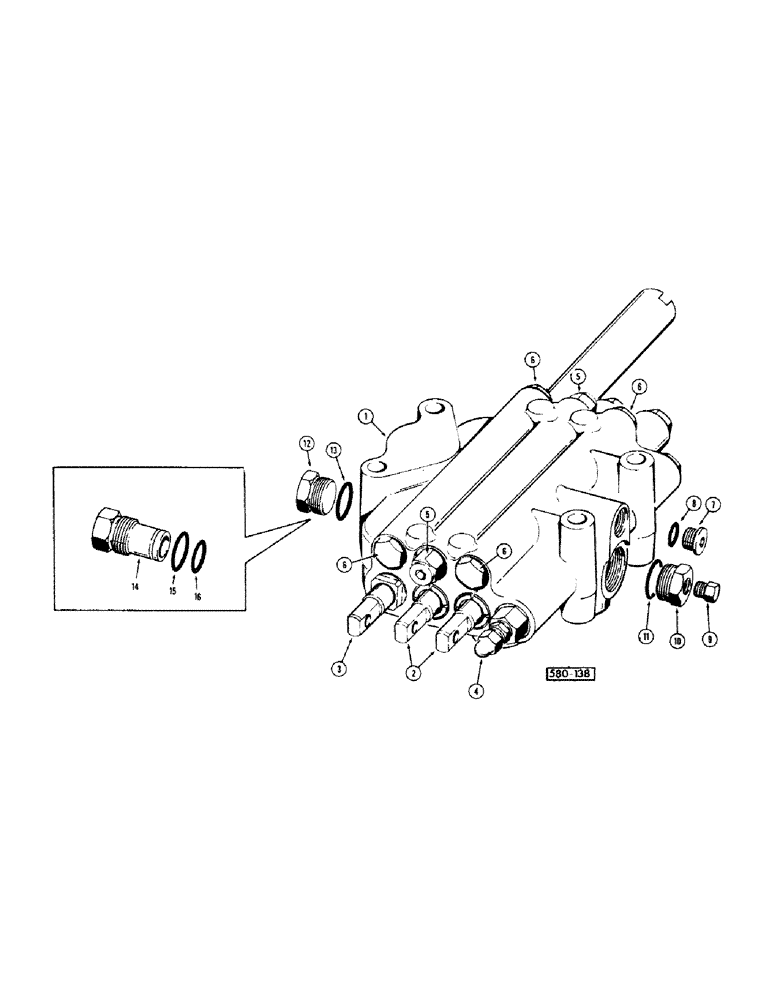

Запчасти Case 35 (070) - LOADER CONTROL VALVE (3 SPOOL)

D52042

LOCK VALVE

Valve-loader control ass'y (VDP 22DDF)

1шт.

1

NUS-NSS

Body NEG

1шт.

2

D37050

SPOOL

-loader tilt and clam, Voir Figure 74/See Figure 74/Siehe

2шт.

D37051

SPOOL

-loader tilt and clam, Voir Figure 74/See Figure 74/Siehe

2шт.

D37052

SPOOL

-loader tilt and clam, Voir Figure 74/See Figure 74/Siehe

2шт.

D37053

SPOOL

-loader tilt and clam, Voir Figure 74/See Figure 74/Siehe

2шт.

3

D46024

SPOOL

-loader lift, Voir Figure 76/See Figure 76/Siehe

1шт.

D46025

SPOOL

-loader lift, Voir Figure 76/See Figure 76/Siehe

1шт.

D46026

PLUG

Spool-loader lift, Voir Figure 76/See Figure 76/Siehe

1шт.

D46027

SPOOL

-loader lift, Voir Figure 76/See Figure 76/Siehe

1шт.

4

NUS

Valve-main relief, NSS NEG, Voir Figure 80/See Figure

1шт.

5

NUS

Valve-secondary relief, NSS NEG, Voir Figure 82/See Figure

3шт.

6

NUS-NSS

Valve-check, NEG, Voir Figure 84/See Figure

3шт.

7

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy Hex Soc, 3/4"-16 ORB

1шт.

9

221-12

PLUG,Sq Hd, 1/4"-18

"1/4"

1шт.

10

D38825

ADAPTER

ass'y

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" Ring

1шт.

12

273916

PLUG,Hex, 1-5/16" - 12 ORB

(Loader model only) Hex Hd, 1 5/16"-12 ORB

1шт.

13

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" Ring

1шт.

D61251

FITTING

Connector ass'y

1шт.

14

NUS-NSS

Connector NEG

1шт.

15

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" Ring (large)

1шт.

16

L32680

RING

"O" Ring (small)

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
