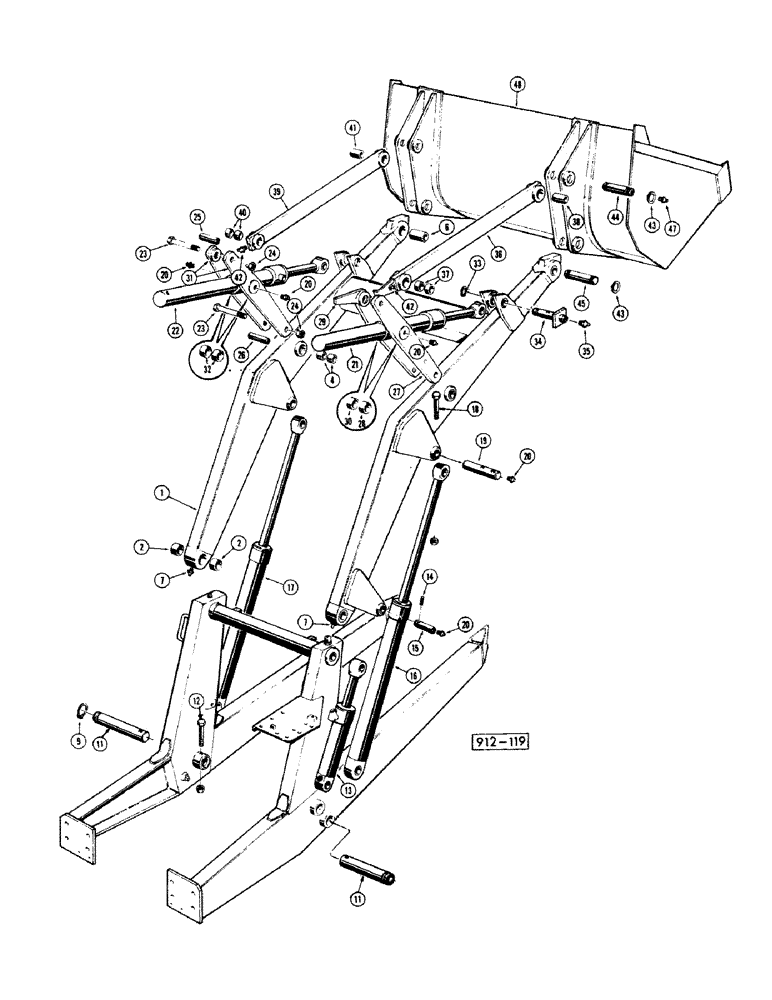

Запчасти Case 35 (004) - LOADER

1

D55343

ARM

-loader ass'y

1шт.

2

D30935

BUSHING,47.85mm ID x 57.15mm OD x 33.27mm L

4шт.

4

D37763

BUSHING

4шт.

6

D30931

BUSHING,38.33mm ID x 47.63mm OD x 69.85mm L

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting-grease "1/8"

2шт.

9

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

3шт.

11

D44915

AXLE PIN

Pin

3шт.

12

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

-hex. "3/8" x 3-1/4" NC"

3шт.

E19347

NUT

-hex. lock

3шт.

13

REF

INSTRUCTION

Cylinder - Hydra-leveling, ., Voir Figure 90/See Figure 90/Siehe

1шт.

14

135-814

GROOVED PIN,5/16" x 2 3/4", Type E, Hardened

Pin-roll "5/16" x 2-3/4"

1шт.

15

D31265

PIN

1шт.

16

REF

INSTRUCTION

Cylinder - Lift RH, ., Voir Figure 86/See Figure 86/Siehe

1шт.

17

REF

INSTRUCTION

Cylinder - Lift LH, ., Voir Figure 86/See Figure 86/Siehe

1шт.

18

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

-hex. "3/8" x 2-3/4" NC"

2шт.

E19347

NUT

-hex. lock "3/8" NC"

2шт.

19

D44983

PIN

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting-grease "1/8"

7шт.

21

REF

INSTRUCTION

Cylinder, tilt RH, ., Voir page 88/See page 88/Siehe

1шт.

22

REF

INSTRUCTION

Cylinder, tilt LH, ., Voir page 88/See page 88/Siehe

1шт.

23

13-16108

BOLT,Hex, 1" - 8 x 6-3/4", Gr 5

-hex. "1" x 6-3/4" NC"

4шт.

24

131-20

LOCK NUT,1"-8, GB

Nut-hex., lock "1" NC"

4шт.

25

D45904

BUSHING,26.67mm ID x 38.07mm OD x 99.21mm L

Spacer-upper

2шт.

26

D31219

BUSHING,26.67mm ID x 38.08mm OD x 101.6mm L

Spacer-lower

2шт.

27

D44996

DRAG LINK

Link-tilt cylinder, RH outer ass'y

1шт.

28

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

1шт.

29

D45017

DRAG LINK

Link-tilt cylinder, RH inner ass'y

1шт.

30

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

1шт.

31

D44997

ARTICULATION

Link-tilt, cylinder LH, ass'y

2шт.

32

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

1шт.

33

D25279

SNAP RING,M35, Int

Ring-snap

2шт.

34

D45001

PIN

2шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting-grease "1/8"

2шт.

36

D30945

DRAG LINK

Arm-tilt RH ass'y

1шт.

37

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

2шт.

38

D30931

BUSHING,38.33mm ID x 47.63mm OD x 69.85mm L

1шт.

39

D30947

SUN VISOR

Arm-tilt LH ass'y

1шт.

40

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

2шт.

41

D30931

BUSHING,38.33mm ID x 47.63mm OD x 69.85mm L

1шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting-grease "1/8"

2шт.

43

D25279

SNAP RING,M35, Int

Ring-snap

8шт.

44

D37287

PIN

2шт.

45

NLS

NO LONGER SERVICED

2шт.

47

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

48

REF

INSTRUCTION

Bucket, ., Voir page 12/See page 12/Siehe

1шт.
