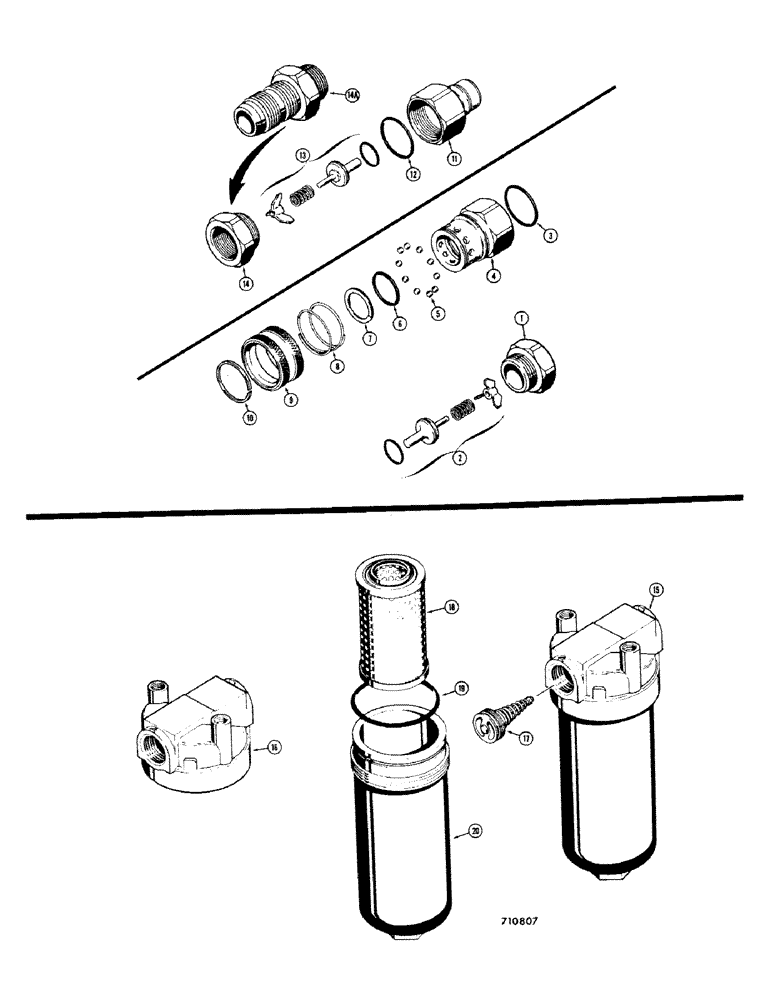

Запчасти Case 35 (062) - HYDRAULIC COUPLING

D52800

COUPLING, QUICK, FEM

Coupling, female

1шт.

1

D31975

FITTING

-end, coupling

1шт.

2

D53915

VALVE

1шт.

3

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

4

D53916

BODY

1шт.

5

211-6

BALL,7/32" Dia

10шт.

6

D53895

SEAL,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

1шт.

7

D54276

RING

-backup

1шт.

8

D31979

VALVE SPRING

Spring

1шт.

9

D31980

SLEEVE CYLINDER

Sleeve

1шт.

10

D31981

RING

-retaining

1шт.

D52694

QUICK MALE COUPLING

Coupling, male

1шт.

11

D31971

BODY

1шт.

12

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

13

D53915

VALVE

1шт.

14

D31975

FITTING

-end, coupling

1шт.

D52673

COUPLING, BREAK AWAY

Coupling, male

1шт.

11

D31971

BODY

1шт.

12

D31985

SEAL,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

13

D53915

VALVE

1шт.

14a

D53918

COUPLING, BREAK AWAY

Fitting-end, coupling

1шт.

15

D43567

FILTER ASSY

ass'y, D43567 hyd oil filter

1шт.

D42440

FILTER HEAD

Head-filter, D43567 hyd oil

1шт.

16

NUS-NSS

Head NEG, D43567 hyd oil filter

1шт.

17

D49377

LOCK VALVE

Valve, D43567 hyd oil filter

1шт.

D43800

FILTER, ELEMENT

Element kit, D43567 hyd oil filter

1шт.

18

NUS-NSS

Element NEG, D43567 hyd oil filter

1шт.

19

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" Ring, D43567 hyd oil filter

1шт.

20

D42439

HOUSING

-filter, D43567 hyd oil

1шт.
