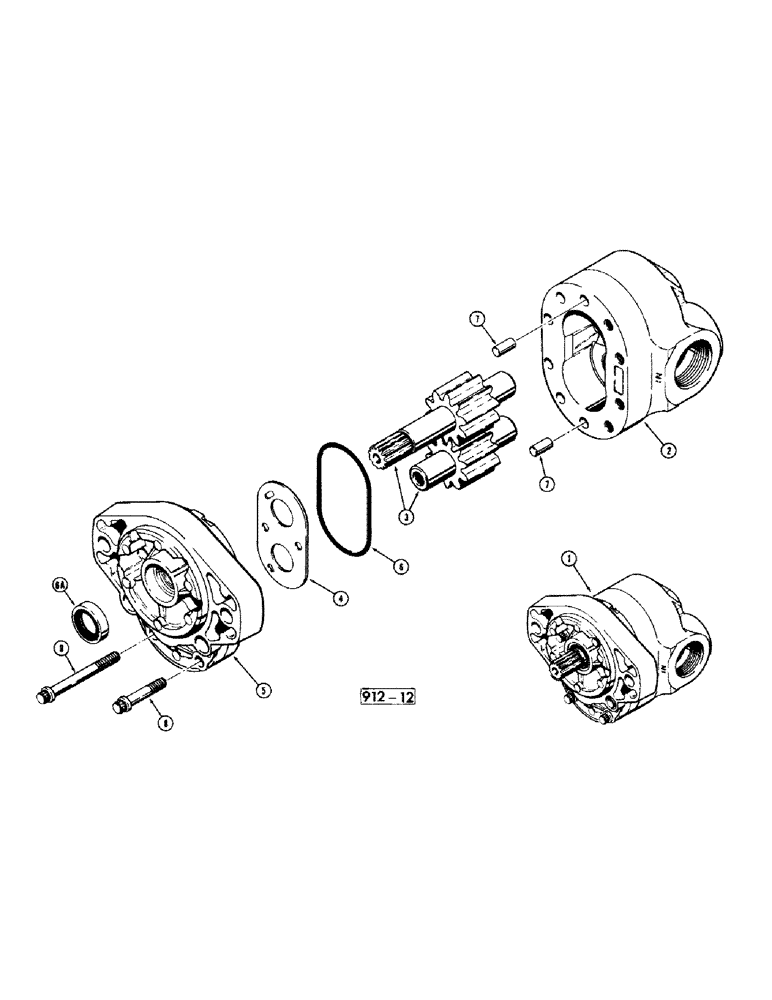

Запчасти Case 35 (058) - D49241 HYDRAULIC PUMP

1

D49241

PUMP, HYDRAULIC

Pump ass'y (TRW 19-920178-00), Includes: Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

Body NEG

1шт.

3

D50103

GEAR

set

1шт.

4

D50104

PLATE

-pressure

1шт.

D50105

COVER

ass'y, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

Cover NEG

1шт.

6

F30271

SEAL

"O" Ring

1шт.

6a

D52477

SEAL

1шт.

7

D50106

DOWEL

Pin-dowel

2шт.

8

166-48

SCREW,Flg, 3/8" - 16 x 1 3/4", Gr 8

"3/8" x 1-3/4" NC"

4шт.

9

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

Screw "3/8" x 3-1/4" NC"

4шт.
