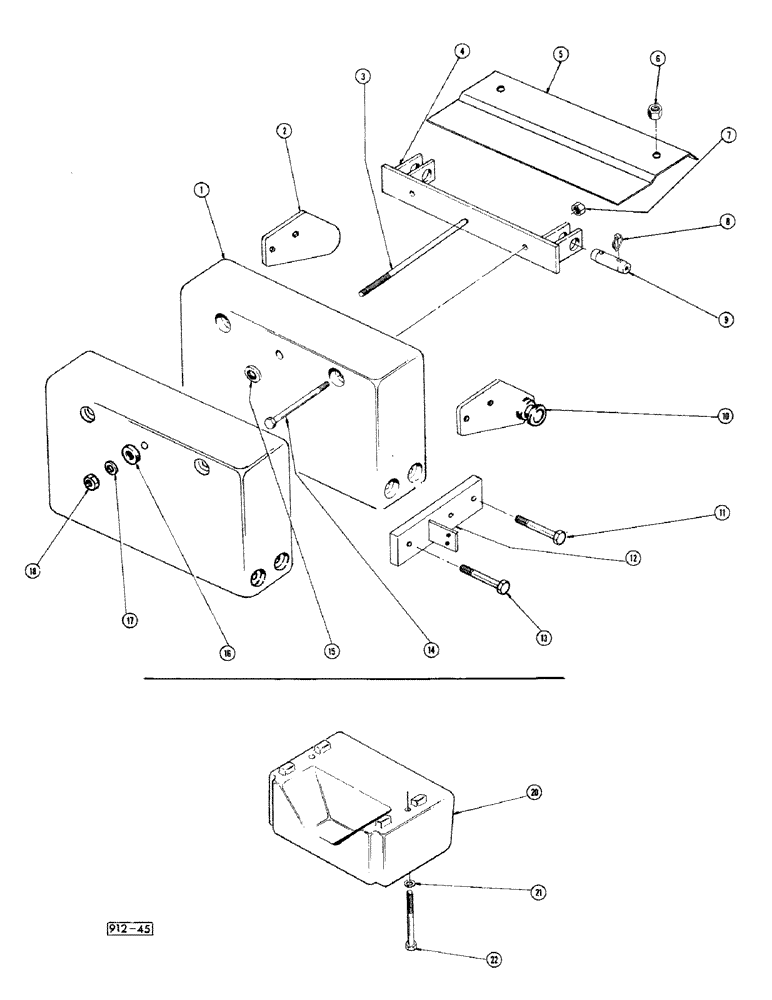

Запчасти Case 35 (052) - COUNTERWEIGHTS, REAR COUNTERWEIGHT

1

D31204

BALANCER

Counterweight-rear

2шт.

2

D37135

ARM

-support LH

1шт.

3

E11733

Threaded rod

1шт.

4

D50818

BRACKET

1шт.

5

E30907

SHIELD

Sheet-protective

1шт.

6

25-1116

NUT,1"-14, G5

-hex. "1" NS"

2шт.

7

230-41116

NUT,1"-8, GA

Nut-hex.lock "1" NC"

2шт.

8

21901

PIN

Klik pin

4шт.

9

D49812

PIN,38.1mm OD x 137.16mm L

2шт.

10

D37134

ARM

-support RH

1шт.

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

- Si utilise/If Hex, 1"-8 x 6 1/2", G5

4шт.

11

13-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

4шт.

230-41116

NUT,1"-8, GA

Nut-hex.lock "1" NC"

4шт.

12

E11737

PLATE

2шт.

13

13-16120

SCREW,Hex, 1" - 8 x 7 1/2", Gr 5

BOLT, Hex, 1"-8 x 7 1/2", G5

2шт.

230-41116

NUT,1"-8, GA

Nut-hex.lock "1" NC"

2шт.

14

13-16168

BOLT,Hex, 1" - 8 x 10-1/2", Gr 5

2шт.

15

D24516

WASHER

1шт.

16

E11736

BUSHING

-spacer

2шт.

17

E15356

WASHER

27

1шт.

18

25-1018

NUT,1 1/8"-7, G5

-hex. "1-1/8" NC"

1шт.

20

D32736

WEIGHT

Counterweight-front

1шт.

E12332

WEIGHT

Counterweight-front

1шт.

21

192-217

LOCK WASHER,3/4"

front counterweight 3/4"

2шт.

22

13-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

-hex. "3/4" x 8-1/2" NC", front counterweight

2шт.
