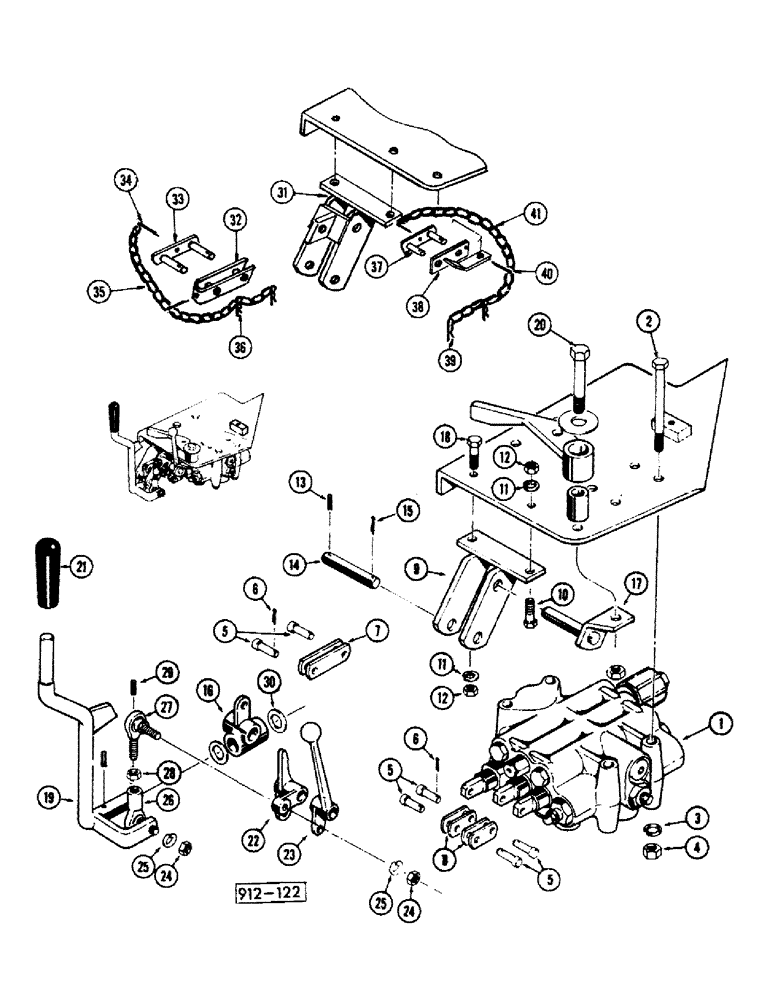

Запчасти Case 35 (048) - 3-SPOOL VALVES CONTROL FOR LOADER

1

D52042

LOCK VALVE

Valve, Voir page 70/See page 70/Siehe

1шт.

2

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

-hex. "3/8"x4-1/2"NC"

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

-hex. "3/8" NC"

4шт.

5

141-103

CLEVIS PIN,5/16" x .940"

Pin

6шт.

6

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

6шт.

7

D34624

LINK

-valve long

2шт.

8

D38651

LINK

-valve short

4шт.

9

D37573

BRACKET

-lever

1шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

-hex. "3/8" NC"

2шт.

13

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

14

D37553

PIN

1шт.

15

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

16

D37575

LEVER

1шт.

17

D37552

PIN

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

19

D43970

LEVER

1шт.

20

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

-hex. "3/8" x 2-1/2" NC"

1шт.

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

-hex., "3/8" x 2-3/4" NC - Pour Allemagne/For Germany/Fur

1шт.

95-6

WASHER,3/8"

1шт.

E19347

NUT

1шт.

21

A37247

KNOB

1шт.

22

D43966

LEVER

1шт.

23

D38640

LEVER

1шт.

24

25-116

NUT,Hex, 3/8"-24, G5

-hex. "3/8" NF"

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

D40908

BALL JOINT

Joint-ball, female

1шт.

27

D46071

BALL JOINT

Joint-ball, male

1шт.

28

25-116

NUT,Hex, 3/8"-24, G5

-hex. "3/8" NF"

1шт.

29

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

2шт.

31

E30740

BRACKET

-lever, Pour Allemagne/For Germany/Fur

1шт.

32

E30727

Stirrup, Pour Allemagne/For Germany/Fur

1шт.

33

E30725

Plate, locking, Pour Allemagne/For Germany/Fur

1шт.

34

E30726

Pin-cotter, 2 x 15 - Pour Allemagne/For

2шт.

35

E30722

Chainlet, Pour Allemagne/For Germany/Fur

1шт.

36

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080", Klik, /For Germany

2шт.

37

E30865

Plate, locking, Pour Allemagne/For Germany/Fur

1шт.

38

E30862

Bracket, Pour Allemagne/For Germany/Fur

1шт.

39

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080", Klik, /For Germany

2шт.

40

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) , Pour Allemagne/For 1/16" x 5/8"

2шт.

41

E30722

Chainlet, Pour Allemagne/For Germany/Fur

1шт.
