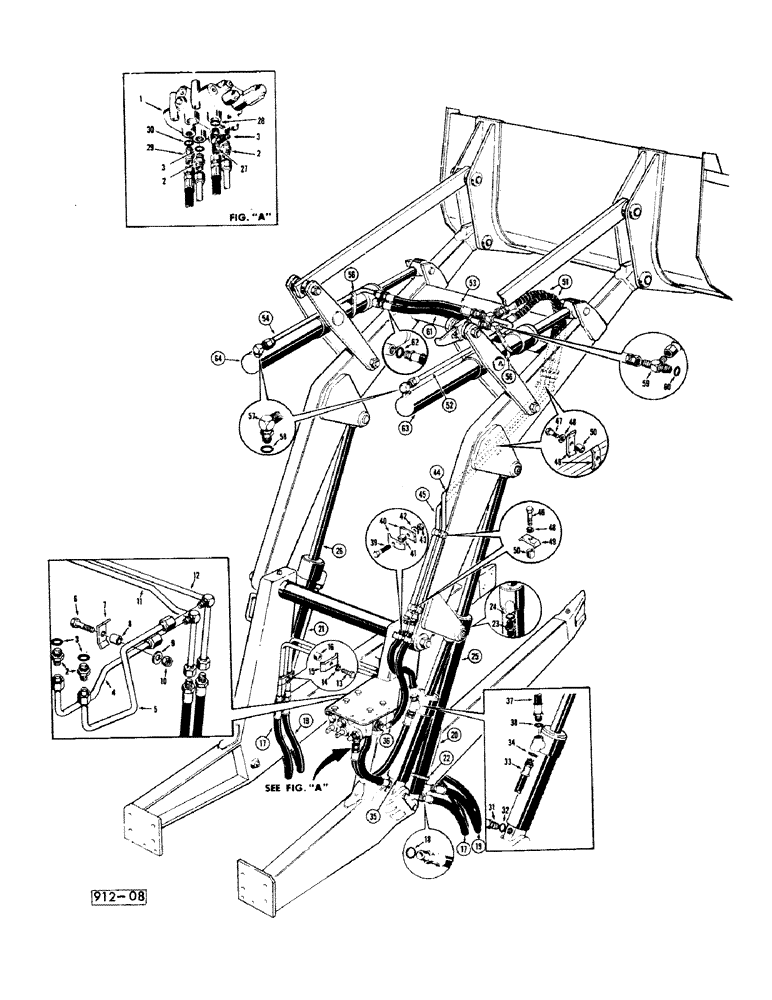

Запчасти Case 35 (038) - LOADER LIFT, TILT AND HYDRA-LEVELING HYDRAULICS

1

REF

INSTRUCTION

Valve, ., Voir Figures 66-70/See Figures

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Connector ass'y

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

D50360

TUBE

-front

1шт.

5

D50362

TUBE

-rear

1шт.

6

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

7

E32857

CLAMP

2шт.

8

D33552

BUSHING

Spacer

1шт.

9

195-25

WASHER,3/8"

1шт.

10

131-6

LOCK NUT,3/8"-16, GC

Nut-hex. lock "3/8" NC"

1шт.

11

D50357

TUBE

-rear

1шт.

E31520

TUBE

-rear, Pour All emagne/For Germany/Fur

1шт.

12

D50353

TUBE

-front

1шт.

E31519

TUBE

-front, Pour All emagne/For Germany/Fur

1шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

-hex. "3/8" x 1-1/2" NC"

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

E32857

CLAMP

2шт.

16

D33552

BUSHING

Spacer

1шт.

17

D30533

HOSE

ass'y

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

19

D30541

HOSE

2шт.

20

D31460

TUBE

RH

1шт.

21

D31459

TUBE

LH

1шт.

22

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

Clamp

2шт.

23

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Connector ass'y

2шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

25

REF

INSTRUCTION

Cylinder-lift RH, ., Voir Figure 86/See Figure 86/Siehe

1шт.

26

REF

INSTRUCTION

Cylinder-lift LH, ., Voir Figure 86/See Figure 86/Siehe

1шт.

27

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ass'y

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Connector ass'y

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

31

D37185

HOSE ASSY.

Hose lower

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

33

D37184

HOSE

upper

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

35

REF

INSTRUCTION

Cylinder-hydra-Leveling, ., Voir Figure 90/See Figure 90/ Siehe

1шт.

36

D30543

HOSE,12.7mm ID x 736.6mm L, SAE 100R2

1шт.

37

D44436

HOSE

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

39

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

40

D40236

CLAMP

2шт.

41

D33554

BUSHING

Spacer

1шт.

42

195-25

WASHER,3/8"

1шт.

43

131-6

LOCK NUT,3/8"-16, GC

Nut-hex. lock

1шт.

44

D31361

TUBE

-LH

1шт.

45

D31359

TUBE

-RH

1шт.

46

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2-1шт.

47

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

-hex. "5/16" x 1-1/4" NC"

2шт.

48

92-5

LOCK WASHER,5/16"

4-3шт.

49

R17319

CLAMP

5-4шт.

50

D33551

BUSHING

Spacer

4-3шт.

51

D31370

HOSE

2шт.

52

D61058

TUBE

RH

1шт.

53

D30543

HOSE,12.7mm ID x 736.6mm L, SAE 100R2

1шт.

54

D38637

TUBE

LH

1шт.

56

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

Clamp

2шт.

57

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Assy 90º, 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

58

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

59

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ass'y

1шт.

60

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

61

D31368

HOSE

1шт.

62

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

63

REF

INSTRUCTION

Cylinder-dump RH, ., Voir Figure 88/See Figure 88/Siehe

1шт.

64

REF

INSTRUCTION

Cylinder-dump LH, ., Voir Figure 88/See Figure 88/Siehe

1шт.
