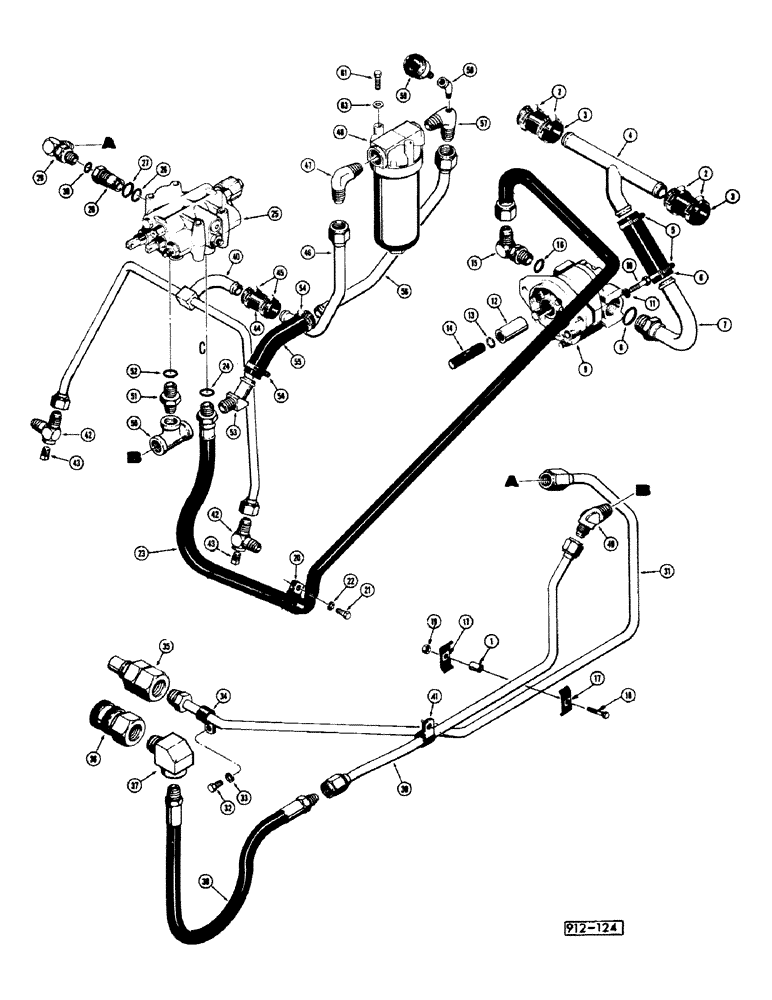

Запчасти Case 35 (032) - LOADERS HYDRAULICS

1

D33554

BUSHING

Spacer

1шт.

2

214-22

X

Clamp

4шт.

3

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

4

D41098

TEE

Tube-connecting

1шт.

5

214-22

X

Clamp

2шт.

6

D51543

HOSE,1.25" ID x 8.00"

1шт.

7

D37747

Tube

1шт.

8

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

"O" Ring

1шт.

9

REF

INSTRUCTION

Pump, ., Voir Figures 58-60/See Figures

1шт.

10

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

-hex. "1/2" x 1-3/4" NC"

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

D31108

SPLINED COUPLING

Coupling ass'y

1шт.

13

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75

1шт.

14

D30569

SHAFT

1шт.

15

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1шт.

16

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" Ring

1шт.

17

D40236

CLAMP

2шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

19

131-6

LOCK NUT,3/8"-16, GC

Locknut "3/8" NC"

1шт.

20

D40471

CLAMP

4шт.

21

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

E32004

HOSE

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

25

REF

INSTRUCTION

Valve-control, ., Voir Figures 66-70/See Figures

1шт.

D61251

FITTING

Connector ass'y

1шт.

26

L32680

RING

"O" Ring (small)

1шт.

27

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" Ring (large)

1шт.

28

NUS-NSS

Connector NEG

1шт.

29

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

31

E31927

HOSE ASSY.

Tube

1шт.

32

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

33

92-6

LOCK WASHER,3/8"

1шт.

34

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

1шт.

35

D52694

QUICK MALE COUPLING

Coupling-male, Voir Figure 62/See Figure 62/Siehe

1шт.

36

D52800

COUPLING, QUICK, FEM

Coupling-female, Voir Figure 62/See Figure 62/Siehe

1шт.

37

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

1шт.

38

D49118

HOSE

1шт.

39

D60654

TUBE

1шт.

40

D38627

TUBE

1шт.

41

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

1шт.

42

D28485

ELBOW UNION

Tee

2шт.

43

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

Plug

2шт.

44

32798

HOSE

1шт.

45

E15741

Clamp

2шт.

46

D55377

TUBE

1шт.

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

1шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25-106

NUT,3/8"-16, G5

-hex. "3/8" NC"

1шт.

47

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

1шт.

48

D43567

FILTER ASSY

ass'y, Voir Figure 64/See Figure 64/Siehe

1шт.

49

218-547

ELBOW,45 Degree, 1 5/16"-12 37 Degree x 3/4"-14, NPTF

1шт.

50

221-425

FITTING,3/4" NPT

Tee

1шт.

51

218-5022

HYD CONNECTOR,1 1/16"-12, O-Ring x 3/4"-16, Pipe

Connector-straight

1шт.

52

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

53

R11626

CONNECTOR, ELEC

Stem

1шт.

54

E15741

Clamp

2шт.

55

L43005

HOSE

1шт.

56

D56859

TUBE

1шт.

E31961

TUBE

Pour Allemagne/For Germany/Fur

1шт.

57

D55728

ELBOW UNION

Elbow

1шт.

58

221-401

ELBOW,45 Degree, 1/8"-27, NPT

1шт.

59

D29650

ELECTRICAL GAUGE

Gauge-pressure

1шт.

61

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

63

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.
