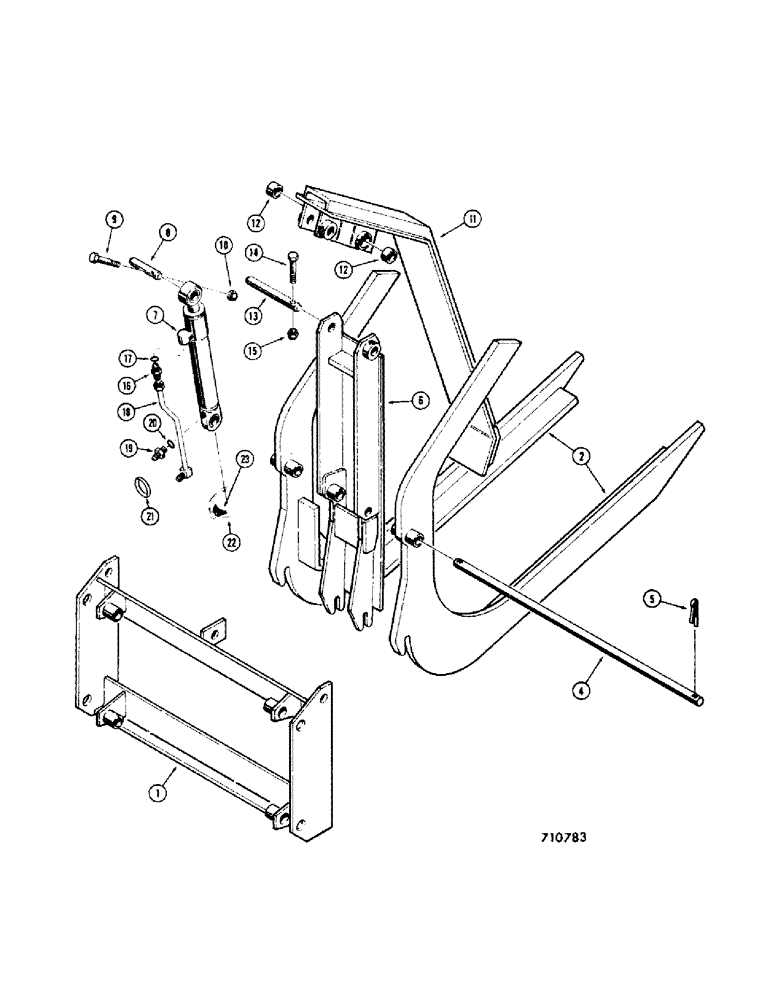

Запчасти Case 35 (030) - GRAPPLE ATTACHMENT USED WITH LOGGING OR PALLET FORKS

1

D30953

Frame-fork

1шт.

2

D43124

FORK TEDDER

Fork-logging

2шт.

3

D21575

FORK TEDDER

Fork-pallet (Not illustrated) D47999(US)

2шт.

4

D21656

SHAFT

1шт.

5

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

6

D46133

Frame

1шт.

7

REF

INSTRUCTION

Cylinder, ., Voir page 92/See page 92/Siehe

1шт.

8

D46141

PIN,31.75mm OD x 101.6mm L

1шт.

9

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

-hex. "3/8" x 2-3/4" NC"

1шт.

10

131-352

LOCK NUT,3/8"-16, GA

Nut-hex. "3/8" NC"

1шт.

11

D46114

Arm ass'y

1шт.

12

D32890

BUSHING

2шт.

13

D46142

Pin

1шт.

14

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

-hex. "3/8" x 2-3/4" NC"

1шт.

15

131-352

LOCK NUT,3/8"-16, GA

Nut-hex. "3/8" NC"

1шт.

16

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Assy 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

18

D48028

Tube

1шт.

19

D48030

CONNECTOR, ELEC

Connector ass'y

1шт.

21

D48031

Ring

1шт.

22

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

Clamp

1шт.

23

D38648

BLOCK

Saddle

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
