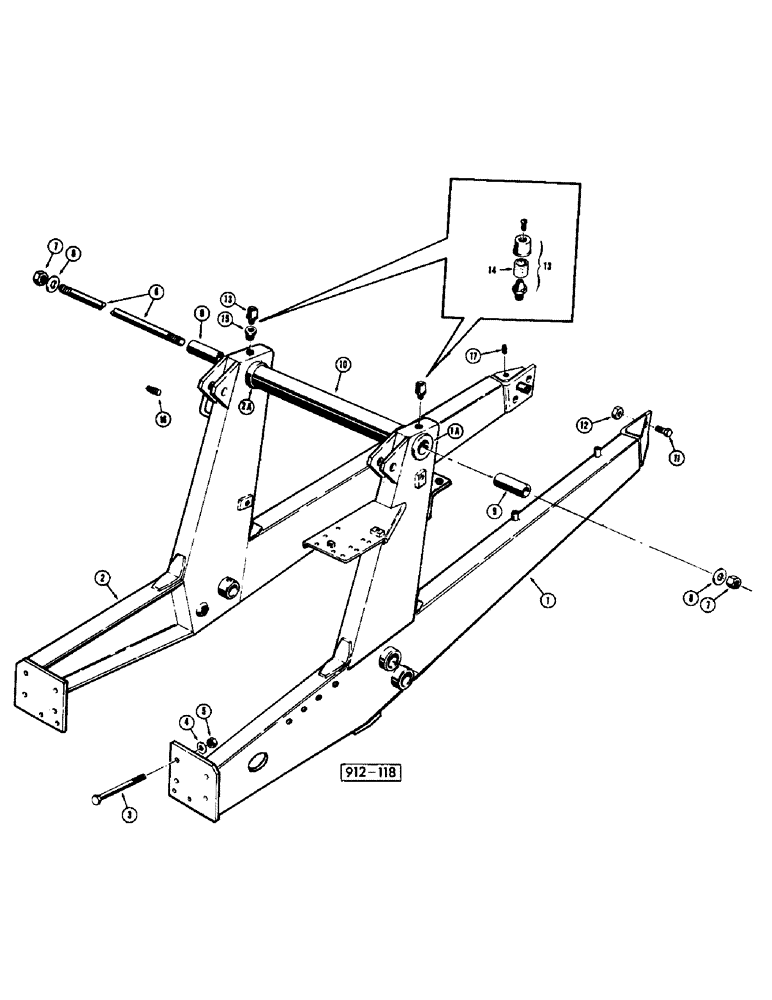

Запчасти Case 35 (002) - LOADER SUBFRAME

1

E32059

FUNNEL

Frame-Loader, RH

1шт.

1

E32293

Frame-Loader, RH, Pour Allemagne/For Germany/Fur

1шт.

1a

D52277

BOSS

(welded)

1шт.

2

E32058

FUNNEL

Frame-loader, LH

1шт.

2

E32295

Frame-loader, LH, Pour Allemagne/For Germany/Fur

1шт.

2a

D52277

BOSS

(welded)

1шт.

3

26-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 8

-hex. "5/8" x 8" NC"

8шт.

4

E15584

WASHER

8шт.

5

129-563

NUT,5/8"-11, G8

-hex. "5/8" NC"

8шт.

6

D37713

ROD

upper

1шт.

7

131-20

LOCK NUT,1"-8, GB

Nut-hex.lock "1" NC"

2шт.

8

D37732

WASHER,26.99mm ID x 63.5mm OD x 3.57mm Thk

2шт.

9

D52278

SLEEVE,25.78mm ID x 47.63mm OD x 121.41mm L

-spacer

2шт.

10

D58166

TUBE

1шт.

11

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

11

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

12

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

4шт.

13

31543

BREATHER

2шт.

14

T14011

ELEMENT

1шт.

15

221-62

REDUCER,Hex, 1" x 1/4" NPT

Bushing

1шт.

16

221-13

PLUG,Sq Hd, 3/8"-18

"3/8"

1шт.

17

221-12

PLUG,Sq Hd, 1/4"-18

"1/4"

1шт.
